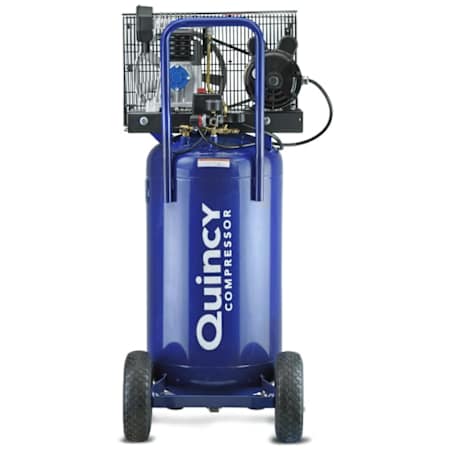

Quincy Compressor 2 HP 24 Gal 135 Max PSI Single-Stage Portable Electric (120 Volt) Reciprocating Air Compressor
Model: Q12124VPQ|Item: bci5120436
from theQT Single Stage Collection
$999.00
Special Order
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 6 to 9 weeks
-Details
Product Information:
- Perfect For Light Commercial Or Do It Yourself Applications
- Strong & durable single stage compressor that last
- Perfect for larger projects, spray painting, HVLP spray gun and nail guns
- Cast Iron Cylinder, Valve Plate & Crankshaft
- Valve plate design provides efficiency & maximum strength
- Assures smooth, trouble-free operation with 10,000+ hour pump rating
- Aluminum Head & Special Fin Design
- Helps dissipate heat; keeps compressor running cool
- 100% factory tested at full pressure
- 8.3 CFM @ 40 PSI; 7.4 CFM @ 100 PSI
- Plenty of power to run a wide range of air tools
- Tackle airbrushing, drilling, sanding and bolting/wrenching
- 24-Gallon ASME Vertical Tank
- Compact design with sturdy tires for easy portability
- Easy-access manual drain simplifies routine maintenance
- Start-Stop Pressure Switch & Pressure Regulator
- Automatically starts the compressor when system pressure drops
- 1/4" pressure regulator lets you maintain constant air pressure
- 1 Year Factory Warranty: Covers defect in materials & workmanship
- Quincy "No Bull" Extended Warranty Available
- Must include EWK-1 Maintenance Kit at time of purchase
- Must register online; see Warranty PDF under Specs tab for info
- Quincy Part #: 1129740226 Quincy Model #: Q12124VPQ
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 47-13/16"
- Width: 22"
- Length: 22-5/8"
- Product Weight: 148 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Included Accessories:
- Pressure Gauge Included
- Pressure Regulator Included
Tank Specifications:
- Tank Outlet Size: 1/4"
- Tank Size: 24
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 7
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 2 HP
- Amperage: 19A
- Voltage: 120V
- Voltage: 120V
Dimensions and Measurements
CFM | 7.4 |
Height | 47.8 in. |
Length | 22.6 in. |
Product Weight | 148 lbs. |
Width | 22 in. |
Dimensions and Measurements
CFM | 7.4 |
Height | 47.8 in. |
Length | 22.6 in. |
Product Weight | 148 lbs. |
Width | 22 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 8.3 CFM |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum Head, Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/4" |
Tank Size | 24 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 8.3 CFM |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum Head, Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/4" |
Tank Size | 24 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 19 |
Breaker Needs | 30 Amps |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 2 |
Maximum Operating Pressure (PSI) | 135 |
Stages | Single-Stage |
Voltage | 120 |
Electrical and Operational Information
Amperage | 19 |
Breaker Needs | 30 Amps |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 2 |
Maximum Operating Pressure (PSI) | 135 |
Stages | Single-Stage |
Voltage | 120 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
