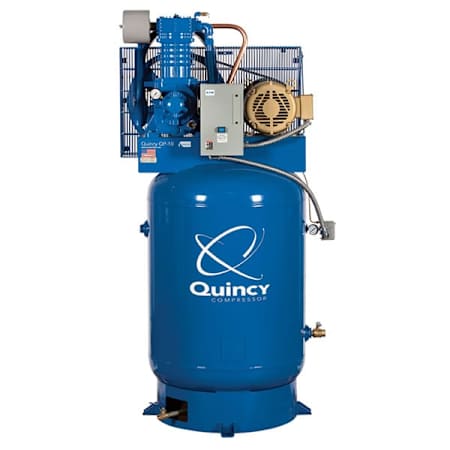

Quincy Compressor 10 HP 120 Gal 175 Max PSI QP Pro Two-Stage Stationary Electric (208 Volt 3 Phase) Reciprocating Air Compressor with Vertical Tank
Model: 2020040787|Item: bci5121403
Details
Specifications:
- Certifications: ASME, CSA, and UL
- Fuel Type: Electric
- Height: 75"
- Width: 30"
- Length: 40"
- Product Weight: 850 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 120
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Full Pressure Lubrication
- Lubrication Type: Oil Lubricated
- CFM: 35
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 10 HP
- Amperage: 32.2A
- Voltage: 208V
- Voltage: 208V
Dimensions and Measurements
CFM | 35 |
Height | 75 in. |
Length | 40 in. |
Product Weight | 850 lbs. |
Width | 30 in. |
Dimensions and Measurements
CFM | 35 |
Height | 75 in. |
Length | 40 in. |
Product Weight | 850 lbs. |
Width | 30 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Full Pressure Lubrication |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum Head, Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 120 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Full Pressure Lubrication |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum Head, Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 120 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 32.2 |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 10 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 208 |
Electrical and Operational Information
Amperage | 32.2 |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 10 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 208 |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
