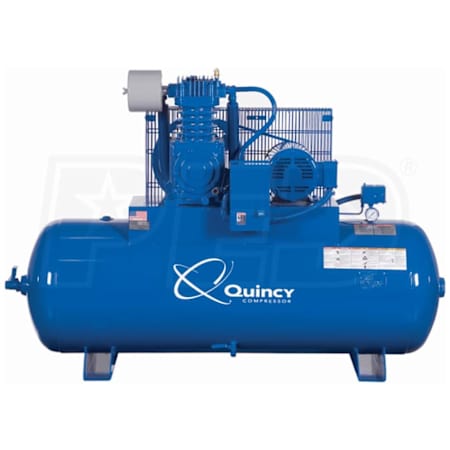

Quincy Compressor 10 HP 120 Gal 175 Max PSI QP MAX Two-Stage Stationary Electric (230 Volt 3 Phase) Reciprocating Air Compressor with Horizontal Tank
Model: 5103D12HCA23M|Item: bci5121406
from theQT Max Collection
$9,103.75
Special Order
Horsepower
10-HP
$9,103.75
15-HP
$10,847.50
10-HP
Orientation
Horizontal
$9,103.75
Vertical
$9,561.25
Horizontal
Voltage
208V (3-Phase)
$9,103.75
230V (3-Phase)
$9,103.75
460V (3-Phase)
$9,103.75
230V (3-Phase)
Free Shipping!
Leaves the Warehouse in 5 to 9 weeks
-Details
Specifications:
- Certifications: ASME, CSA, and UL
- Fuel Type: Electric
- Height: 55"
- Width: 28"
- Length: 78"
- Product Weight: 850 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Tank Specifications:
- Electric Drain Valve Included
- Tank Outlet Size: 3/4"
- Tank Size: 120
Pump Specifications:
- After Cooler Included
- Oil Sight Glass Included
- Oil System Type: Full Pressure Lubrication
- Lubrication Type: Oil Lubricated
- CFM: 35
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 10 HP
- Amperage: 28A
- Voltage: 230V
- Voltage: 230V
Dimensions and Measurements
CFM | 35 |
Height | 55 in. |
Length | 78 in. |
Product Weight | 850 lbs. |
Width | 28 in. |
Dimensions and Measurements
CFM | 35 |
Height | 55 in. |
Length | 78 in. |
Product Weight | 850 lbs. |
Width | 28 in. |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Full Pressure Lubrication |
Pump Low Oil Shutdown | Yes |
Pump Material | Aluminum Head, Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 120 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Full Pressure Lubrication |
Pump Low Oil Shutdown | Yes |
Pump Material | Aluminum Head, Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 120 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 28 |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 10 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 230 |
Electrical and Operational Information
Amperage | 28 |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 10 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 230 |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
