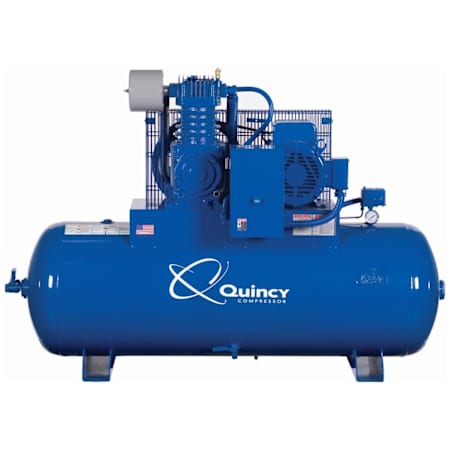

Quincy Compressor 7.5 HP 80 Gal 175 Max PSI QT Pro Two-Stage Stationary Electric (208 Volt 3 Phase) Reciprocating Air Compressor with Horizontal Tank
Model: 2020040814|Item: bci5121432
Details
Specifications:
- Certifications: ASME, CSA, and UL
- Fuel Type: Electric
- Height: 47"
- Width: 23"
- Length: 70"
- Product Weight: 740 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 80
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 23
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 7.5 HP
- Amperage: 25.3A
- Voltage: 208V
- Voltage: 208V
Dimensions and Measurements
CFM | 22.6 |
Height | 47 in. |
Length | 70 in. |
Product Weight | 740 lbs. |
Width | 23 in. |
Dimensions and Measurements
CFM | 22.6 |
Height | 47 in. |
Length | 70 in. |
Product Weight | 740 lbs. |
Width | 23 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum Head, Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum Head, Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 25.3 |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 7.5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 208 |
Electrical and Operational Information
Amperage | 25.3 |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 7.5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 208 |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
