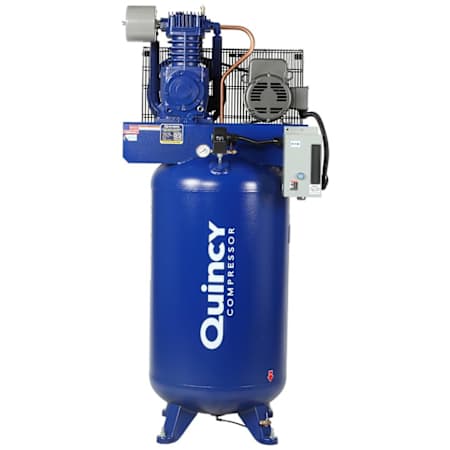

Quincy Compressor 5 HP 80 Gal 175 Max PSI QT Pro Two-Stage Stationary Electric (230 Volt 1 Phase) Reciprocating Air Compressor with Vertical Tank

Specifications:

• Certifications: ASME, CSA, and UL
• Fuel Type: Electric
• Height: 74"
• Width: 24"
• Length: 37"
• Product Weight: 680 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Tank Specifications:

• Tank Outlet Size: 3/4"
• Tank Size: 80

Pump Specifications:

• Oil Sight Glass Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 17
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 5 HP
• Amperage: 28A
• Voltage: 230V
• Voltage: 230V
