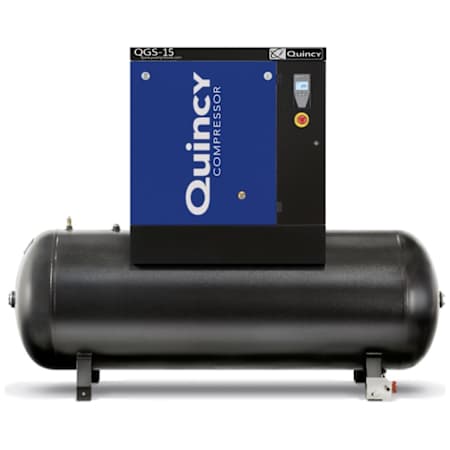

Quincy Compressor 15 HP 120 Gal 125 Max PSI Stationary Electric (208, 230, 460 Volt 3 Phase) Rotary Air Compressor

Product Information:

• Superior Compressed Air Performance: Oil injected twin screw pump provides reliable, quiet power


• Compact, Modern Turn-Key Design: Small footprint allows for installation flexibility


• Continuous 100% Duty Cycle: Runs your application efficiently 24/7


• Standard Quiet Enclosure
  • Runs without the vibration & noise of piston compressors
  • Ideal for most applications; 54.9 CFM at 125 PSI


• Premium Synthetic Lubrication: Rated for 8,000 hours; low oil carryover protects tools


• Auto-Dual Operation: Customize timed shut down settings for your operation


• Long Life V-Belt Drive: Less maintenance, reliable operation


• TEFC Electric Motor
  • 3-phase unit is capable of running on 208/230-460 voltage
  • (IP 55 wash down) Minimum operating temperature 36° F


• Extended 3 Year Factory Warranty Available: Must register with Quincy & use Quincy Maintenance Kits


• True Blue 5-Year Warranty with Quincy Authorized Start Up: Covers airend, motor, separator reservoir, cooler/heat exchanger


• Quincy Part #: 4152021976 - Quincy Model #: QGS 15 HP-3

Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 58"
• Width: 25"
• Length: 76"
• Product Weight: 815 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Filter Included

Tank Specifications:

• Tank Outlet Size: 1/2"
• Tank Size: 120

Pump Specifications:

• Oil Sight Glass Included
• Lubrication Type: Oil Lubricated
• CFM: 55
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 15 HP
• dB Rating: 69
• Voltage: 208, 230, 460V
