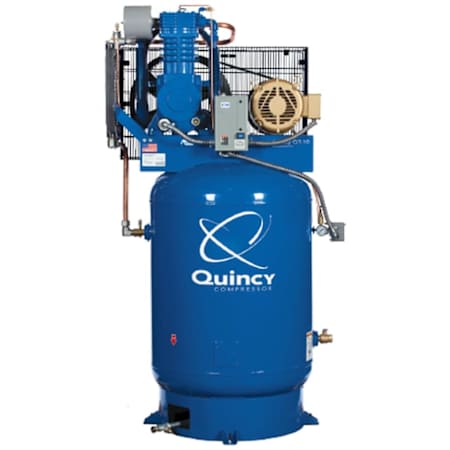

Quincy Compressor 10 HP 120 Gal 175 Max PSI QT MAX Two-Stage Stationary Electric (230 Volt 3 Phase) Reciprocating Air Compressor with Vertical Tank N/A
Quincy Compressor 10 HP 120 Gal 175 Max PSI QT MAX Two-Stage Stationary Electric (230 Volt 3 Phase) Reciprocating Air Compressor with Vertical Tank N/A
Alternate Image

Quincy Compressor 10 HP 120 Gal 175 Max PSI QT MAX Two-Stage Stationary Electric (230 Volt 3 Phase) Reciprocating Air Compressor with Vertical Tank

Model: 4103D12VCB23M
|
Item: bci5121452

from theQT Max Collection
$7,499.00
Special Order

Tank Orientation

N/A
Horizontal
$6,999.00
N/A
Vertical
$7,499.00

Voltage

N/A
208V (3-Phase)
$7,499.00
N/A
230V (3-Phase)
$7,499.00
N/A
460V (3-Phase)
$7,499.00
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-
Return & Shipping Details

Details

Specifications:

  • Certifications: ASME, CSA, and UL
  • Fuel Type: Electric
  • Height: 75"
  • Width: 30"
  • Length: 40"
  • Product Weight: 1000 lbs
  • Warranty: 1 Year Commercial and 1 Year Residential

Tank Specifications:

  • Electric Drain Valve Included
  • Tank Outlet Size: 1"
  • Tank Size: 120

Pump Specifications:

  • After Cooler Included
  • Oil Sight Glass Included
  • Oil System Type: Splash Lubricated
  • Lubrication Type: Oil Lubricated
  • CFM: 35
  • Drive Type: Belt Drive

Engine and Motor Specifications:

  • Horsepower: 10 HP
  • Amperage: 28A
  • Voltage: 230V
  • Voltage: 230V
