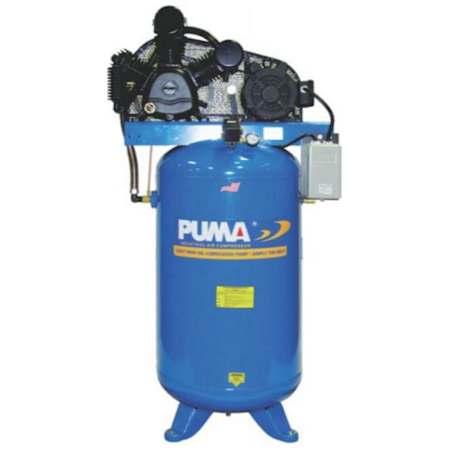

PumaAir 5 HP 80 Gal 175 Max PSI Two-Stage Stationary Electric (460 Volt) Reciprocating Air Compressor
Model: TUK-5080VM3-460|Item: bci5121067
Details
Product Information:
- 460 Volt, 3 Phase Induction Motor: Lower RPM (1740) helps motor run cooler, last longer
- Magnetic Starter With Overload Protection: Factory installed- no need for extra expense
- Oil Lubricated 2-Stage Cast-Iron Pump
- Powerful, durable & reliable; suited for commercial applications
- Produces 18.3 CFM at 90 PSI & 17 CFM at 175 PSI
- Lower RPM (950) helps pump run cooler, last longer
- 80 Gallon Vertical Tank
- Has a smaller footprint than horizontal models
- Rated at 200 PSI; ASME & CRN certified for safety
- Easy access to tank drain underneath tank
- Belt Drive: Full enclosure protects the belt & operator
Specifications:
- Certifications: ASME and CRN
- Fuel Type: Electric
- Height: 72"
- Width: 32"
- Length: 40"
- Product Weight: 560 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1/2"
- Tank Size: 80
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 18
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 5 HP
- Amperage: 6.6A
- Voltage: 460V
- Voltage: 460V
Dimensions and Measurements
CFM | 18.3 |
Height | 72 in. |
Length | 40 in. |
Product Weight | 560 lbs. |
Width | 32 in. |
Dimensions and Measurements
CFM | 18.3 |
Height | 72 in. |
Length | 40 in. |
Product Weight | 560 lbs. |
Width | 32 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 80 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 80 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 6.6 |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 460 |
Electrical and Operational Information
Amperage | 6.6 |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 460 |
Warranty and Product Information
Certifications | ASME, CRN |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME, CRN |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
