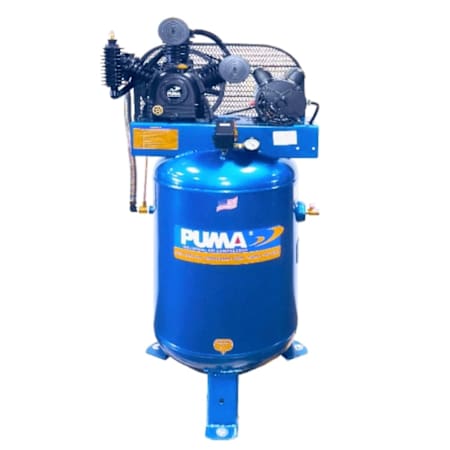

PumaAir 3 HP 40 Gal 175 Max PSI Two-Stage Stationary Electric (208, 230 Volt) Reciprocating Air Compressor
Model: TE-3040V|Item: bci5121083
$1,192.00
Special Order
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 4 to 6 weeks
-Details
Product Information:
- 208-230 Volt, Single Phase 3HP Induction Motor
- Reliable power for craftspeople & light commercial use
- Requires 16.6-15 amp circuit; no magnetic starter needed
- 2 Stage Cast-Iron 985 RPM Pump: Produces 10.2 CFM at 90 PSI, 9.3 CFM at 175 PSI
- Oil Lubricated: Runs quietly & reliably
- 40 Gallon Vertical Tank
- ASME & CRN certified for reliability & safety
- 1/2" air outlet; 1/4" drain ball valve; rated to 175 PSI
- Smaller footprint than horizontal models frees up shop space
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 54"
- Width: 28"
- Length: 24"
- Product Weight: 260 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1/2"
- Tank Size: 40
Pump Specifications:
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 10
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 3 HP
- Amperage: 15, 16.6A
- Voltage: 208, 230V
- Voltage: 208, 230V
Dimensions and Measurements
CFM | 10.2 |
Height | 54 in. |
Length | 24 in. |
Product Weight | 260 lbs. |
Width | 28 in. |
Dimensions and Measurements
CFM | 10.2 |
Height | 54 in. |
Length | 24 in. |
Product Weight | 260 lbs. |
Width | 28 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 40 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 40 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 15, 16.6 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 3 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Voltage | 208, 230 |
Electrical and Operational Information
Amperage | 15, 16.6 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 3 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Voltage | 208, 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
