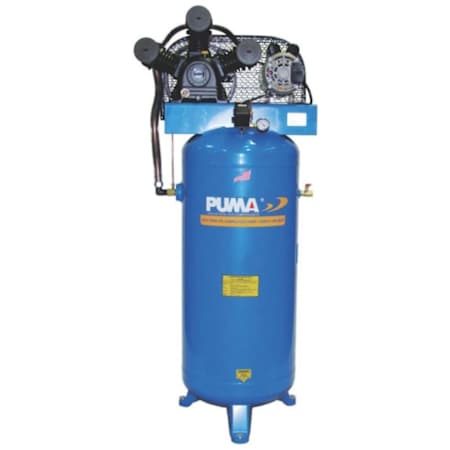

PumaAir 6.5 HP 60 Gal 135 Max PSI Single-Stage Stationary Electric (208, 230 Volt) Reciprocating Air Compressor
Model: PK7060V|Item: bci5120970
$1,472.28
Special Order
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 4 to 6 weeks
-Details
Product Information:
- Cast-Iron 1130 RPM 3-Cylinder Pump
- More durable & longer service life than aluminum pumps
- Splash lubrication keeps pump running smoother & quieter
- 3450 RPM Capacitor-Start Motor
- No need for a expensive magnetic starter
- Comes equipped with overload protection
- 208-230V Single Phase; 230V Plug Not Included: 230V plug needs to be purchased by customer to meet local code
- Belt Drive With Sturdy Guard Housing: Provides more power, easy to maintain
- 60 Gallon Vertical Tank
- ASME & CRN certified for safety to 135 working PSI
- Convenient 1/2" ball-valve air outlet & 1/4" ball-valve drain
- Produces 21 CFM At 40 PSI; 19.5 CFM At 90 PSI: Ideal for home & professional applications
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 70"
- Width: 32"
- Length: 29"
- Product Weight: 360 lbs
- Warranty: 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1/2"
- Tank Size: 60
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 20
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 6.5 HP
- Voltage: 208, 230V
- Voltage: 208, 230V
Dimensions and Measurements
CFM | 19.5 |
Height | 70 in. |
Length | 29 in. |
Product Weight | 360 lbs. |
Width | 32 in. |
Dimensions and Measurements
CFM | 19.5 |
Height | 70 in. |
Length | 29 in. |
Product Weight | 360 lbs. |
Width | 32 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 60 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 60 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 6.5 |
Maximum Operating Pressure (PSI) | 135 |
Stages | Single-Stage |
Voltage | 208, 230 |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 6.5 |
Maximum Operating Pressure (PSI) | 135 |
Stages | Single-Stage |
Voltage | 208, 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Residential |
