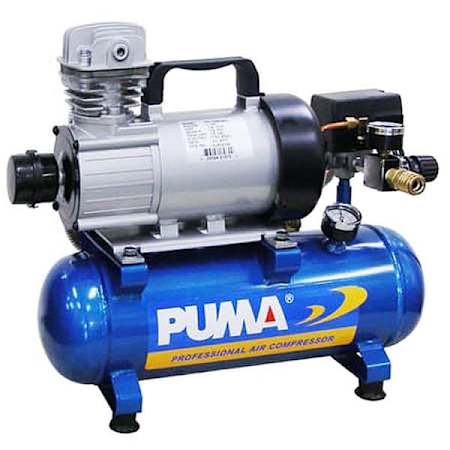

PumaAir 0.75 HP 1.5 Gal 135 Max PSI Single-Stage Portable Electric (12 Volt) Reciprocating Air Compressor
Model: PD1006|Item: bci5120802
Details
Product Information:
- Oil-Less, Direct-Drive Design
- Allows unit to be mounted in any direction
- Ideal for offroad, RV, agriculture, construction & motorsport use
- Runs On 12-Volt DC Power
- 6.5-ft battery cable with alligator connectors included
- Use anywhere you can mount a battery & need on-board air
- Requires 50aH battery (battery not included)
- Patented Pump Design: Runs with lower noise (78dB) & improved cooling
- Deep Cooling Fin Design On Cylinder Head & Cylinders: High efficiency cooling helps the pump last longer
- Oversized Motor Cooling Fan: Helps prevents the motor from overheating
- Continuous 100% Duty Cycle: Ideal for high-demand applications
- 1.5 Gallon Air Tank
- Increases air availability
- Anti-vibration feet help reduce noise
- On-Board Gauges & Air Outlet
- Monitor tank & output pressure at a glance to 135 PSI
- Quick-connector for fast tool changes
Specifications:
- Fuel Type: Electric
- Height: 16-1/2"
- Width: 6-3/16"
- Length: 17-1/2"
- Product Weight: 31 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Included Accessories:
- Pressure Gauge Included
- Filter Included
Tank Specifications:
- Tank Outlet Size: 1/4"
- Tank Size: 1.5
Pump Specifications:
- Lubrication Type: Oil Free
- CFM: 1
- Drive Type: Direct Drive
Engine and Motor Specifications:
- Horsepower: 0.75 HP
- Amperage: 46A
- dB Rating: 78
- Voltage: 12V
- Voltage: 12V
Dimensions and Measurements
CFM | 1.36 |
Height | 16.5 in. |
Length | 17.5 in. |
Product Weight | 31 lbs. |
Width | 6.2 in. |
Dimensions and Measurements
CFM | 1.36 |
Height | 16.5 in. |
Length | 17.5 in. |
Product Weight | 31 lbs. |
Width | 6.2 in. |
Included Components
Filter Included | Yes |
Included Components
Filter Included | Yes |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 2 CFM |
CFM Rated @ | 90 PSI |
Duty Cycle | 100 % |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Free |
Mounting Type | Portable |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/4" |
Tank Size | 1.5 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 2 CFM |
CFM Rated @ | 90 PSI |
Duty Cycle | 100 % |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Free |
Mounting Type | Portable |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/4" |
Tank Size | 1.5 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 46 |
Decibels | 78 |
Drive Type | Direct Drive |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 0.75 |
Maximum Operating Pressure (PSI) | 135 |
Stages | Single-Stage |
Voltage | 12 |
Electrical and Operational Information
Amperage | 46 |
Decibels | 78 |
Drive Type | Direct Drive |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 0.75 |
Maximum Operating Pressure (PSI) | 135 |
Stages | Single-Stage |
Voltage | 12 |
Warranty and Product Information
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
