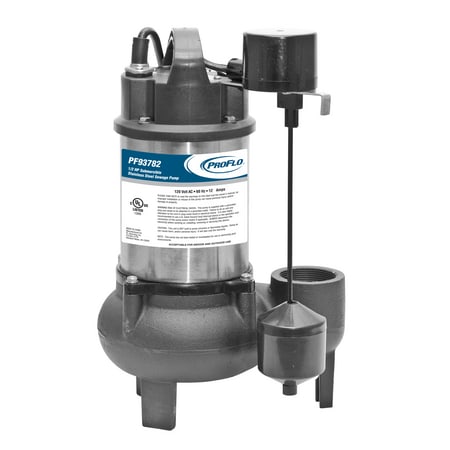

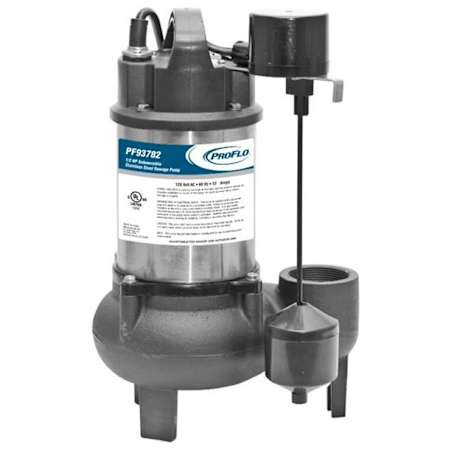

PROFLO PROFLO PF93782 - 1/2 HP Stainless Steel and Cast Iron Sewage Pump (2") with Vertical Switch and SS Impeller
Model: PF93782|Item: bci3152805
Details
Features:
- Submersible Stainless and Cast Iron Sewage Pump w/ Vertical Float Switch
- Engineered for typical residential and commercial applications
- For movement from a basin to sewer/septic line; 30' Max Head
- 1/2 HP Split Capacitor Motor (3450 RPM): Thermally protected, Continuous duty design, only draws 12A
- Stainless Steel Motor Housing and Cast Iron Volute: For rapid heat dissipation and corrosion-resistance in harsh conditions
- Solid Stainless Steel Non-Clogging Vortex Impeller: Corrosion-resistant design, passes spherical solids up to 2"
- Vertical Float Switch: Piggyback style plug, pump can be run manually w/o switch
- 2" FNPT High Capacity Discharge: Will replace most sewage pumps without any plumbing changes
- 15' Power Cord w/ Piggyback Plug: Great for applications that require a longer cord
- Carbon/Ceramic/Stainless Steel Shaft Seal: Combined with a stainless steel motor shaft for maximum life
- Liquid Temperature Range: 32°F - 120°F
- 3-Year Limited Warranty - UL-Listed
Dimensions and Measurements
Cord Length | 15 in. |
Discharge Diameter | 2 in. |
Flow Rate (GPM) | 140 |
Flow Rate by Feet of Head | 72 gal / 15 ft, 140 gal / 0 ft, 3 gal / 30 ft, 25 gal / 25 ft, 123 gal / 5 ft, 49 gal / 20 ft, 97 gal / 10 ft |
Height | 15.5 in. |
Maximum Diameter Solids | 2 in. |
Maximum Head Height | 30 in. |
Dimensions and Measurements
Cord Length | 15 in. |
Discharge Diameter | 2 in. |
Flow Rate (GPM) | 140 |
Flow Rate by Feet of Head | 72 gal / 15 ft, 140 gal / 0 ft, 3 gal / 30 ft, 25 gal / 25 ft, 123 gal / 5 ft, 49 gal / 20 ft, 97 gal / 10 ft |
Height | 15.5 in. |
Maximum Diameter Solids | 2 in. |
Maximum Head Height | 30 in. |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Configuration | Sump Pump |
Float Type | Vertical Switch |
Housing Material | Stainless Steel |
Impeller Material | Stainless Steel |
Manual Override | Yes |
Material | Cast Iron |
Material Casing | Stainless Steel |
Shutoff Head in Feet | 30 |
Submersible | Yes |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Configuration | Sump Pump |
Float Type | Vertical Switch |
Housing Material | Stainless Steel |
Impeller Material | Stainless Steel |
Manual Override | Yes |
Material | Cast Iron |
Material Casing | Stainless Steel |
Shutoff Head in Feet | 30 |
Submersible | Yes |
Electrical and Operational Information
Amperage | 12 |
Horsepower | 0.5 |
Maximum Fluid Temperature | 120 °F |
Motor RPM | 3450 |
Voltage | 120 |
Wattage | 1440 |
Electrical and Operational Information
Amperage | 12 |
Horsepower | 0.5 |
Maximum Fluid Temperature | 120 °F |
Motor RPM | 3450 |
Voltage | 120 |
Wattage | 1440 |
Warranty and Product Information
Certifications | UL |
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Certifications | UL |
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
