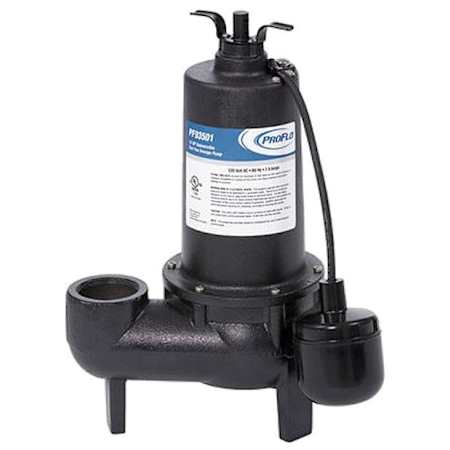

PROFLO 1/2 HP Cast Iron Sewage Pump (2") with Piggyback Tether Float
Model: PF93501|Item: bci2443788
$414.00
500 In Stock
Details
Features:
- Submersible Sewage/Ejector Pump w/ Tether Float Switch: For movement from a basin to sewer or septic line/drainage field
- 1/2 HP Split Capacitor Motor (3450 RPM): Thermally protected,Continuous duty design, only draws 7.6A
- Heavy-Duty Cast Iron Housing and Base Construction: For rapid heat dissipation and extended life
- Adjustable Wide Angle Tether Float: Provides automatic or manual operation via piggyback plug
- SS Non-Clogging Vortex Impeller: Corrosion-resistant design, passes spherical solids up to 2"
- 2" FNPT High Capacity Discharge: Will replace most sewage pumps without any plumbing changes
- 10' Power Cord w/ Piggyback Plug: Allows for manual operation of the pump
- High-Quality Components: Stainless steel motor shaft and fasteners
- 3-Year Limited Warranty
Dimensions and Measurements
Cord Length | 10 in. |
Depth | 6.25 in. |
Discharge Diameter | 2 in. |
Flow Rate by Feet of Head | 44 gal / 15 ft, 13 gal / 20 ft, 68 gal / 5 ft, 60 gal / 10 ft, 2 gal / 25 ft, 80 gal / 0 ft |
Height | 15.125 in. |
Maximum Diameter Solids | 2 in. |
Maximum Head Height | 25 in. |
Water Connection | 2" |
Width | 9.5 in. |
Dimensions and Measurements
Cord Length | 10 in. |
Depth | 6.25 in. |
Discharge Diameter | 2 in. |
Flow Rate by Feet of Head | 44 gal / 15 ft, 13 gal / 20 ft, 68 gal / 5 ft, 60 gal / 10 ft, 2 gal / 25 ft, 80 gal / 0 ft |
Height | 15.125 in. |
Maximum Diameter Solids | 2 in. |
Maximum Head Height | 25 in. |
Water Connection | 2" |
Width | 9.5 in. |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Configuration | Sump Pump |
Float Type | Tether Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Stainless Steel |
Manual Override | Yes |
Material | Cast Iron |
Material Casing | Cast Iron |
Shutoff Head in Feet | 25 |
Submersible | Yes |
Water Connection Type | FIP, NPT |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Configuration | Sump Pump |
Float Type | Tether Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Stainless Steel |
Manual Override | Yes |
Material | Cast Iron |
Material Casing | Cast Iron |
Shutoff Head in Feet | 25 |
Submersible | Yes |
Water Connection Type | FIP, NPT |
Electrical and Operational Information
Amperage | 7.6 |
Horsepower | 0.5 |
Maximum Fluid Temperature | 120 °F |
Motor RPM | 3450 |
Voltage | 120 |
Electrical and Operational Information
Amperage | 7.6 |
Horsepower | 0.5 |
Maximum Fluid Temperature | 120 °F |
Motor RPM | 3450 |
Voltage | 120 |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
