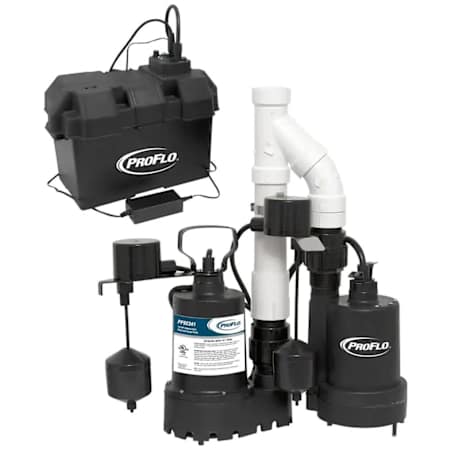

PROFLO 3/10 HP Combination Primary and Backup Sump Pump System
Model: PF92941|Item: bci2443787
$741.00
40 In Stock
Details
Features:
- Primary Pump and Back-Up System: Pre-Assembled kit is ready to install
- 3/10 HP Cast Iron Primary Pump w/ Vertical Float Switch (PF92341)
- Continuous duty, thermally protected - split capacitor motor
- Clog resistant stainless steel impeller; Handles 3/8" solids
- Reliable vertical float switch for automatic operation
- 12-Volt DC Backup Sump Pump Pumps Up to 1080 GPH @ 10'
- Corrosion-resistant thermoplastic construction
- Clog resistant impeller; Handles 1/8" Solids
- Reliable vertical float switch for automatic operation
- Includes:
- (1) 3/10 HP Primary Pump w/ Vertical Float Switch
- (1) 12V Battery Back-Up Pump w/ Vertical Float Switch
- (2) Universal Check Valves
- (1) 2-Amp AC Charger
- (1) Control Panel w/ Lights, Fuse and 87 dB Alarm w/ Mute
- (1) Thermoplastic Battery Box
- Requires (1) 12V Deep Cycle Battery (SOLD SEPARATELY)
- For indoor use only
Dimensions and Measurements
Cord Length | 10 in. |
Depth | 10.5 in. |
Discharge Diameter | 1.5 in. |
Flow Rate by Feet of Head | 25 gal / 15 ft, 28 gal / 10 ft, 18 gal / 15 ft, 46 gal / 0 ft, 36 gal / 5 ft, 23 gal / 0 ft, 12 gal / 20 ft, 13 gal / 20 ft, 1 gal / 25 ft, 30 gal / 10 ft, 22 gal / 5 ft |
Height | 15.125 in. |
Maximum Head Height | 25 in. |
Product Weight | 27 lbs. |
Water Connection | 1-1/2", 1-1/4" |
Width | 8.5 in. |
Dimensions and Measurements
Cord Length | 10 in. |
Depth | 10.5 in. |
Discharge Diameter | 1.5 in. |
Flow Rate by Feet of Head | 25 gal / 15 ft, 28 gal / 10 ft, 18 gal / 15 ft, 46 gal / 0 ft, 36 gal / 5 ft, 23 gal / 0 ft, 12 gal / 20 ft, 13 gal / 20 ft, 1 gal / 25 ft, 30 gal / 10 ft, 22 gal / 5 ft |
Height | 15.125 in. |
Maximum Head Height | 25 in. |
Product Weight | 27 lbs. |
Water Connection | 1-1/2", 1-1/4" |
Width | 8.5 in. |
Included Components
Battery Included | No |
Included Components
Battery Included | No |
Characteristics and Features
Automatic | Yes |
Configuration | Sump Pump |
Float Type | Vertical Switch |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Material | Cast Iron |
Material Casing | Thermoplastic Resin |
Shutoff Head in Feet | 25 |
Submersible | Yes |
Water Connection Type | NPT |
Characteristics and Features
Automatic | Yes |
Configuration | Sump Pump |
Float Type | Vertical Switch |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Material | Cast Iron |
Material Casing | Thermoplastic Resin |
Shutoff Head in Feet | 25 |
Submersible | Yes |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 7.6 |
Backup GPH @ 0 feet | 4200 GPH |
Backup GPH @ 10 feet | 3480 GPH |
Backup GPH @ 15 feet | 2880 GPH |
Backup GPH @ 20 feet | 1500 GPH |
Backup GPH @ 5 feet | 3960 GPH |
Horsepower | 0.3 |
Maximum Fluid Temperature | 120 °F |
Motor RPM | 36 |
Starting Amps | 19 Amps |
Voltage | 12 |
Electrical and Operational Information
Amperage | 7.6 |
Backup GPH @ 0 feet | 4200 GPH |
Backup GPH @ 10 feet | 3480 GPH |
Backup GPH @ 15 feet | 2880 GPH |
Backup GPH @ 20 feet | 1500 GPH |
Backup GPH @ 5 feet | 3960 GPH |
Horsepower | 0.3 |
Maximum Fluid Temperature | 120 °F |
Motor RPM | 36 |
Starting Amps | 19 Amps |
Voltage | 12 |
Warranty and Product Information
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 5 |
Warranty and Product Information
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 5 |
