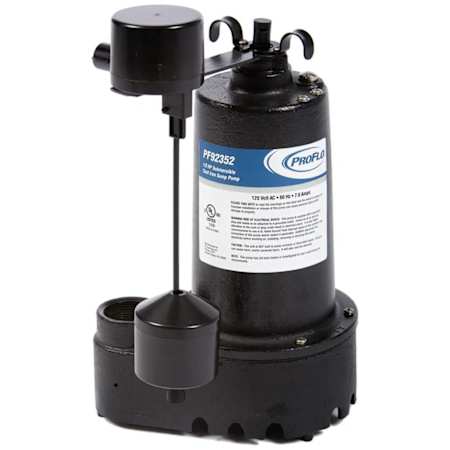

PROFLO 1/3 HP Cast Iron Submersible Sump Pump with Vertical Float Switch
Model: PF92352|Item: bci2443784
Details
Features:
- 1/3 HP Submersible Sump Pump w/ Vertical Float Switch: Great for residential and light commercial applications
- 1/3 HP Split Capacitor Motor (1750 RPM): Thermally protected, continuous duty design, only draws 5.9A
- Heavy-Duty Cast Iron Housing and Base Construction: For rapid heat dissipation and extended pump life
- Slim Pump Body w/ SJE Rhombus Vertical Float Switch: Measure only 8-1/2" wide, great for narrow sump basins
- Side/Bottom Suction w/ Side Discharge (1-1/2"): Able to pass up to 1/2" solids
- High-Quality Components: Stainless steel motor shaft and fasteners
- 5-Year Limited Warranty
Dimensions and Measurements
Cord Length | 10 in. |
Depth | 8.5 in. |
Discharge Diameter | 1.5 in. |
Flow Rate by Feet of Head | 35 gal / 15 ft, 6 gal / 25 ft, 60 gal / 0 ft, 56 gal / 5 ft, 50 gal / 10 ft, 15 gal / 20 ft |
Height | 10.5 in. |
Maximum Head Height | 25 in. |
Product Weight | 19 lbs. |
Water Connection | 1-1/2" |
Width | 7.625 in. |
Dimensions and Measurements
Cord Length | 10 in. |
Depth | 8.5 in. |
Discharge Diameter | 1.5 in. |
Flow Rate by Feet of Head | 35 gal / 15 ft, 6 gal / 25 ft, 60 gal / 0 ft, 56 gal / 5 ft, 50 gal / 10 ft, 15 gal / 20 ft |
Height | 10.5 in. |
Maximum Head Height | 25 in. |
Product Weight | 19 lbs. |
Water Connection | 1-1/2" |
Width | 7.625 in. |
Included Components
Battery Included | No |
Included Components
Battery Included | No |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Configuration | Sump Pump |
Float Type | Vertical Switch |
Housing Material | Cast Iron |
Impeller Material | Nylon |
Manual Override | No |
Material | Cast Iron |
Material Casing | Cast Iron |
Shutoff Head in Feet | 25 |
Submersible | Yes |
Water Connection Type | FIP, NPT |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Configuration | Sump Pump |
Float Type | Vertical Switch |
Housing Material | Cast Iron |
Impeller Material | Nylon |
Manual Override | No |
Material | Cast Iron |
Material Casing | Cast Iron |
Shutoff Head in Feet | 25 |
Submersible | Yes |
Water Connection Type | FIP, NPT |
Electrical and Operational Information
Amperage | 4.1 |
Backup GPH @ 0 feet | 2760 GPH |
Backup GPH @ 10 feet | 1800 GPH |
Backup GPH @ 15 feet | 1500 GPH |
Backup GPH @ 20 feet | 720 GPH |
Backup GPH @ 5 feet | 2160 GPH |
Horsepower | 0.33 |
Maximum Fluid Temperature | 120 °F |
Motor RPM | 1750 |
Voltage | 120 |
Wattage | 912 |
Electrical and Operational Information
Amperage | 4.1 |
Backup GPH @ 0 feet | 2760 GPH |
Backup GPH @ 10 feet | 1800 GPH |
Backup GPH @ 15 feet | 1500 GPH |
Backup GPH @ 20 feet | 720 GPH |
Backup GPH @ 5 feet | 2160 GPH |
Horsepower | 0.33 |
Maximum Fluid Temperature | 120 °F |
Motor RPM | 1750 |
Voltage | 120 |
Wattage | 912 |
Warranty and Product Information
Manufacturer Warranty | 3 |
Warranty and Product Information
Manufacturer Warranty | 3 |
