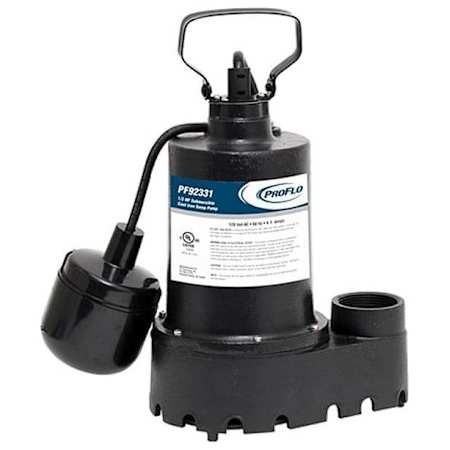

PROFLO 1/3 HP Cast Iron Submersible Sump Pump with Tether Float Switch
Model: PF92331|Item: bci2443779
Details
Features:
- PROFLO Submersible Sump Pump w/ Tether Float Switch: For typical residential and commercial applications
- 1/3 HP Permanent Split Capacitor Motor (1750 RPM): Thermally Protected, Continuous duty design, only draws 4.1A
- Heavy-Duty Cast Iron Housing and Base Construction: Keeps the pump running cooler and extended life
- Adjustable Wide Angle Tether Float: Provides automatic operation via piggyback plug
- Glass-Reinforced Nylon Impeller: Corrosion-resistant design, passes solids up to 3/8"
- High Capacity 1-1/2" Side Discharge: Will replace most sewage pumps without any plumbing changes
- High-Quality Components: Stainless steel motor shaft and fasteners
- 3-Year Limited Warranty
Dimensions and Measurements
Cord Length | 10 in. |
Depth | 5.25 in. |
Discharge Diameter | 1.5 in. |
Flow Rate by Feet of Head | 36 gal / 5 ft, 30 gal / 10 ft, 25 gal / 15 ft, 46 gal / 0 ft, 12 gal / 20 ft, 1 gal / 25 ft |
Height | 10.5 in. |
Maximum Head Height | 25 in. |
Product Weight | 20 lbs. |
Water Connection | 1-1/2" |
Width | 5.25 in. |
Dimensions and Measurements
Cord Length | 10 in. |
Depth | 5.25 in. |
Discharge Diameter | 1.5 in. |
Flow Rate by Feet of Head | 36 gal / 5 ft, 30 gal / 10 ft, 25 gal / 15 ft, 46 gal / 0 ft, 12 gal / 20 ft, 1 gal / 25 ft |
Height | 10.5 in. |
Maximum Head Height | 25 in. |
Product Weight | 20 lbs. |
Water Connection | 1-1/2" |
Width | 5.25 in. |
Included Components
Battery Included | No |
Included Components
Battery Included | No |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Configuration | Sump Pump |
Float Type | Tether Switch |
Housing Material | Cast Iron |
Impeller Material | Nylon |
Manual Override | Yes |
Material | Cast Iron |
Material Casing | Cast Iron |
Shutoff Head in Feet | 25 |
Submersible | Yes |
Water Connection Type | FIP, NPT |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Configuration | Sump Pump |
Float Type | Tether Switch |
Housing Material | Cast Iron |
Impeller Material | Nylon |
Manual Override | Yes |
Material | Cast Iron |
Material Casing | Cast Iron |
Shutoff Head in Feet | 25 |
Submersible | Yes |
Water Connection Type | FIP, NPT |
Electrical and Operational Information
Amperage | 7.6 |
Backup GPH @ 0 feet | 3600 GPH |
Backup GPH @ 10 feet | 3000 GPH |
Backup GPH @ 15 feet | 2100 GPH |
Backup GPH @ 20 feet | 900 GPH |
Backup GPH @ 5 feet | 3360 GPH |
Horsepower | 0.33 |
Maximum Fluid Temperature | 120 °F |
Motor RPM | 1750 |
Starting Amps | 19 Amps |
Voltage | 120 |
Wattage | 492 |
Electrical and Operational Information
Amperage | 7.6 |
Backup GPH @ 0 feet | 3600 GPH |
Backup GPH @ 10 feet | 3000 GPH |
Backup GPH @ 15 feet | 2100 GPH |
Backup GPH @ 20 feet | 900 GPH |
Backup GPH @ 5 feet | 3360 GPH |
Horsepower | 0.33 |
Maximum Fluid Temperature | 120 °F |
Motor RPM | 1750 |
Starting Amps | 19 Amps |
Voltage | 120 |
Wattage | 492 |
Warranty and Product Information
Manufacturer Warranty | 3 |
Warranty and Product Information
Manufacturer Warranty | 3 |
