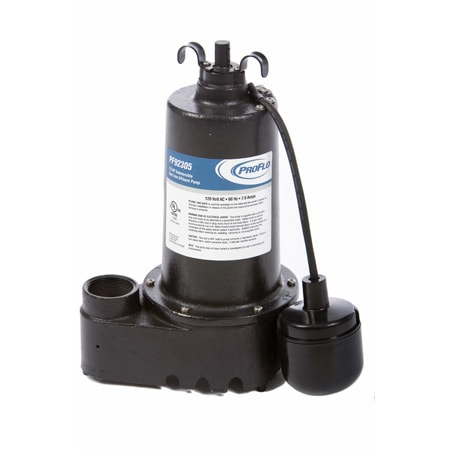

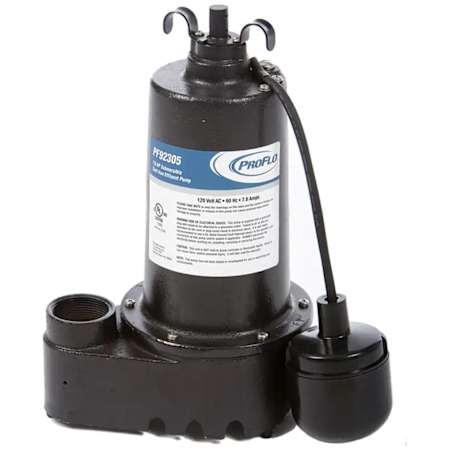

PROFLO 1/3 HP Cast Iron Submersible Effluent Pump with Tether Float Switch
Model: PF92305|Item: bci2443777
$357.75
109 In Stock
Details
Features:
- PROFLO Submersible Effluent Pump w/ Tether Float Switch: For typical residential and commercial applications
- 1/3 HP Permanent Split Capacitor Motor (3450 RPM): Thermally Protected, Continuous duty design, only draws 7.6A
- Heavy-Duty Cast Iron Housing and Base Construction: Keeps the pump running cooler and extends lifespan
- Adjustable Wide Angle Tether Float: Provides automatic operation via piggyback plug
- SS Non-Clogging Vortex Impeller: Corrosion-resistant design, passes solids up to 5/8"
- High Capacity 1-1/2" Side Discharge: Will replace most sewage pumps without any plumbing changes
- High-Quality Components: Stainless steel motor shaft and fasteners
- 3-Year Limited Warranty
Dimensions and Measurements
Cord Length | 10 in. |
Depth | 6 in. |
Discharge Diameter | 1.5 in. |
Flow Rate by Feet of Head | 35 gal / 15 ft, 56 gal / 5 ft, 50 gal / 10 ft, 60 gal / 0 ft, 6 gal / 25 ft, 15 gal / 20 ft |
Height | 12.125 in. |
Maximum Head Height | 25 in. |
Water Connection | 1-1/2" |
Width | 8.5 in. |
Dimensions and Measurements
Cord Length | 10 in. |
Depth | 6 in. |
Discharge Diameter | 1.5 in. |
Flow Rate by Feet of Head | 35 gal / 15 ft, 56 gal / 5 ft, 50 gal / 10 ft, 60 gal / 0 ft, 6 gal / 25 ft, 15 gal / 20 ft |
Height | 12.125 in. |
Maximum Head Height | 25 in. |
Water Connection | 1-1/2" |
Width | 8.5 in. |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Configuration | Effluent |
Float Type | Tether Switch |
Housing Material | Cast Iron |
Impeller Material | Stainless Steel |
Manual Override | Yes |
Material | Cast Iron |
Material Casing | Cast Iron |
Shutoff Head in Feet | 25 |
Submersible | Yes |
Water Connection Type | FIP, NPT |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Configuration | Effluent |
Float Type | Tether Switch |
Housing Material | Cast Iron |
Impeller Material | Stainless Steel |
Manual Override | Yes |
Material | Cast Iron |
Material Casing | Cast Iron |
Shutoff Head in Feet | 25 |
Submersible | Yes |
Water Connection Type | FIP, NPT |
Electrical and Operational Information
Amperage | 7.6 |
Horsepower | 0.33 |
Maximum Fluid Temperature | 120 °F |
Motor RPM | 3450 |
Voltage | 120 |
Wattage | 912 |
Electrical and Operational Information
Amperage | 7.6 |
Horsepower | 0.33 |
Maximum Fluid Temperature | 120 °F |
Motor RPM | 3450 |
Voltage | 120 |
Wattage | 912 |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
