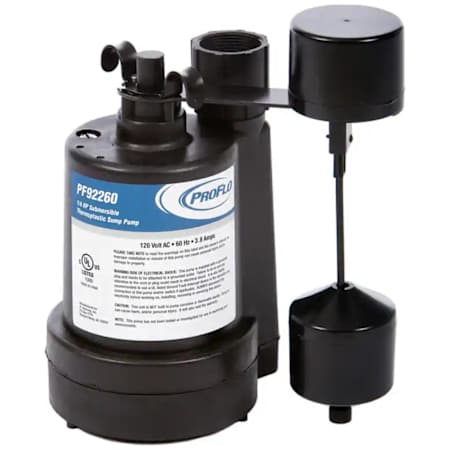

PROFLO 1/4 HP Thermoplastic Submersible Sump Pump with Vertical Float Switch
Model: PF92260|Item: bci2443776
Details
Features:
- 1/4 HP Submersible Sump Pump w/ Vertical Float Switch: Designed for use in residential sump applications
- 1/4 HP Split Capacitor Motor (3450 RPM): Thermally protected, continuous duty design, only draws 3.8A
- Corrosion-Resistant Thermoplastic Construction: Glass reinforced nylon housing and impeller maximizes pump life
- SJE Rhombus Vertical Float Switch: Piggyback style plug, pump can be run manually w/o switch
- Bottom Suction Design w/ Intake Screen: Able to pass up to 1/8" solids
- Top Discharge Design (1-1/4"): Great for smaller, non standard sump basins
- High-Quality Components: Stainless steel motor shaft and fasteners
- 3-Year Limited Warranty
Dimensions and Measurements
Depth | 7.25 in. |
Flow Rate by Feet of Head | 20 gal / 10 ft, 22 gal / 5 ft, 16 gal / 15 ft, 30 gal / 0 ft, 9 gal / 20 ft, 2 gal / 25 ft |
Height | 10.75 in. |
Maximum Head Height | 30 in. |
Water Connection | 1-1/4" |
Width | 8.5 in. |
Dimensions and Measurements
Depth | 7.25 in. |
Flow Rate by Feet of Head | 20 gal / 10 ft, 22 gal / 5 ft, 16 gal / 15 ft, 30 gal / 0 ft, 9 gal / 20 ft, 2 gal / 25 ft |
Height | 10.75 in. |
Maximum Head Height | 30 in. |
Water Connection | 1-1/4" |
Width | 8.5 in. |
Characteristics and Features
Automatic | Yes |
Base Material | Plastic |
Configuration | Sump Pump |
Float Type | Vertical Switch |
Handles Solids | Yes |
Housing Material | Thermoplastic |
Impeller Material | Plastic |
Manual Override | Yes |
Material | Plastic |
Material Casing | Thermoplastic Resin |
Material Housing | Nylon |
Shutoff Head in Feet | 25 |
Submersible | Yes |
Water Connection Type | FIP, MIP, NPT |
Characteristics and Features
Automatic | Yes |
Base Material | Plastic |
Configuration | Sump Pump |
Float Type | Vertical Switch |
Handles Solids | Yes |
Housing Material | Thermoplastic |
Impeller Material | Plastic |
Manual Override | Yes |
Material | Plastic |
Material Casing | Thermoplastic Resin |
Material Housing | Nylon |
Shutoff Head in Feet | 25 |
Submersible | Yes |
Water Connection Type | FIP, MIP, NPT |
Electrical and Operational Information
Amperage | 3.8 |
Backup GPH @ 0 feet | 1800 GPH |
Backup GPH @ 10 feet | 1200 GPH |
Backup GPH @ 15 feet | 960 GPH |
Backup GPH @ 20 feet | 640 GPH |
Backup GPH @ 5 feet | 1320 GPH |
Horsepower | 0.25 |
Maximum Fluid Temperature | 120 °F |
Motor RPM | 3450 |
Voltage | 120 |
Wattage | 370 |
Electrical and Operational Information
Amperage | 3.8 |
Backup GPH @ 0 feet | 1800 GPH |
Backup GPH @ 10 feet | 1200 GPH |
Backup GPH @ 15 feet | 960 GPH |
Backup GPH @ 20 feet | 640 GPH |
Backup GPH @ 5 feet | 1320 GPH |
Horsepower | 0.25 |
Maximum Fluid Temperature | 120 °F |
Motor RPM | 3450 |
Voltage | 120 |
Wattage | 370 |
Warranty and Product Information
Manufacturer Warranty | 3 Year Limited |
Warranty and Product Information
Manufacturer Warranty | 3 Year Limited |
