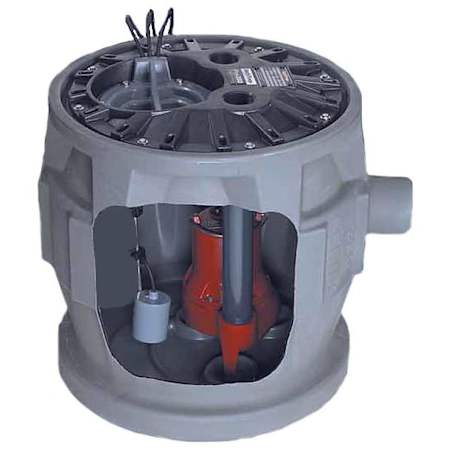

Liberty Pumps 1/2 HP Pro380 Cast Iron Sewage Pump System (24"x24") with Top Discharge
Model: P382LE51|Item: bci2000256
from thePro380 Collection
Details
Features:
- Liberty Pro380 Series P382LE51 w/ QuickTreeTechnology: Factory pre-assembled for easy installation
- 1/2 HP Cast Iron Sewage Pump (LE51): A workhorse for residential and light commercial sewage apps.
- Piggyback Tether Float Switch: Provides reliable automatic operation and allows for longer cycles
- Epoxy Powder Coated Cast Iron Construction: Designed to provide years of reliable performance
- Engineered 2-Vane Semi-Open HYTREL Polymer Impeller: Corrosion-resistant design, passes spherical solids up to 2"
- Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal: With permanently lubricated bearings for extended pump life
- 24" x 24" (41-Gallon) Polyethylene Basin w/ Molded 4" Inlet
- For easier installation in difficult soil/bedrock locations
- Integrally molded anti-flotation collar and torque stops (pump)
- QuickTree Technology and Separate Access Cover w/ Rubber Seals
- Allows easy removal of floats without pulling the pump
- Unique integrated cord seal technology in cover
- 2" Top Discharge / Vent: Designed for vertical discharge applications
- 3-Year Warranty
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 2 in. |
Flow Rate (GPM) | 130 |
Height | 24 in. |
Maximum Diameter Solids | 2 in. |
Maximum Head Height | 25 ft. |
Width | 25 in. |
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 2 in. |
Flow Rate (GPM) | 130 |
Height | 24 in. |
Maximum Diameter Solids | 2 in. |
Maximum Head Height | 25 ft. |
Width | 25 in. |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | Yes |
Material Casing | Polyethylene |
Shutoff Head in Feet | 25 |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | Yes |
Material Casing | Polyethylene |
Shutoff Head in Feet | 25 |
Electrical and Operational Information
Amperage | 12 |
Electrical Phases | 1 |
Horsepower | 0.5 |
Maximum Fluid Temperature | 140 °F |
Starting Amps | 22.5 Amps |
Voltage | 120 |
Electrical and Operational Information
Amperage | 12 |
Electrical Phases | 1 |
Horsepower | 0.5 |
Maximum Fluid Temperature | 140 °F |
Starting Amps | 22.5 Amps |
Voltage | 120 |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
