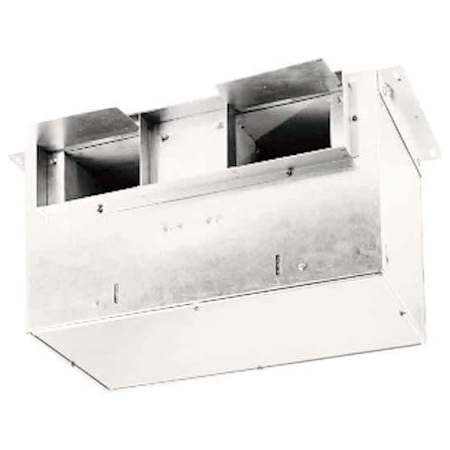

Broan High Capacity 526 CFM 3.4 Sone In-Line Ventilator
Model: L500L|Item: bci877553
from theHigh Capacity Collection
$399.64
Finish: Galvanized Steel -
46 In Stock
Installation Type
In-Line Installation
$399.64
Wall / Ceiling Mount
$363.71
In-Line Installation
Ventilator CFM
415 CFM
$389.90
526 CFM
$399.64
686 CFM
$510.77
526 CFM
Free Shipping!
Leaves the Warehouse in 1 to 3 business days
-Details
Features:
- Features a powerful 526 CFM permanently lubricated and sealed motor that's specifically designed for continuous use applications
- Ventilates rooms up to 478 sq. ft.
- Mounts directly to joists via mounting brackets which makes for an intuitive, straight-forward installation
- Compatible with a number of Broan multi-function and time control wall switches (sold separately)
- Not recommended for use over bathtubs and showers
- Commercial ventilator is certified for UL
- Covered under a 1 year limited manufacturer warranty
High Sones: We know that comfort and ambience matter in your bathroom. This fan produces 3.4 sones of sound output while the fan is in operation.
High CFM Capacity: This fan has an impressive 526 CFM (cubic feet per minute) of clearing capacity designed for larger bathrooms. Controlling humidity in your bathroom extends the life of your decor and makes for a more hospitable space to prepare for the day ahead.
Specifications:
- CFM: 526
- Sones: 3.4
- Duct Size: 4-1/2" x 18-1/2"
- Housing Width: 12-1/4"
- Housing Length: 21-1/2"
- Housing Depth: 11-3/4"
- Amperage: 2.2A
- L400KL: 375 CFM, for Kitchen Applications
- L400L: 406 CFM
- L500KL: 472 CFM, for Kitchen Applications
- L500L (This Model): 481 CFM, for Kitchen Applications
- L700L: 681 CFM
Dimensions and Measurements
CFM | 526 |
CFM (High) | 526 |
Duct Size | 4-1/2" x 18-1/2" |
Housing Depth | 11.75 in. |
Housing Length | 21.5 in. |
Housing Width | 12.25 in. |
Length | 21.5 in. |
Max Ventilation Area | 478 sq. ft. |
Product Weight | 33.9 lbs. |
Width | 12.25 in. |
Dimensions and Measurements
CFM | 526 |
CFM (High) | 526 |
Duct Size | 4-1/2" x 18-1/2" |
Housing Depth | 11.75 in. |
Housing Length | 21.5 in. |
Housing Width | 12.25 in. |
Length | 21.5 in. |
Max Ventilation Area | 478 sq. ft. |
Product Weight | 33.9 lbs. |
Width | 12.25 in. |
Included Components
Heater Included | No |
Light Included | No |
Motion Sensor | No |
Included Components
Heater Included | No |
Light Included | No |
Motion Sensor | No |
Characteristics and Features
Duct Discharge | Horizontal |
Function | In-Line |
Grille Finish | No Grille |
Humidity Sensing | No |
Installation Type | In-Line |
Material | Galvanized Steel, Metal |
Mount Type | Ceiling, Wall |
Night Light | No |
Characteristics and Features
Duct Discharge | Horizontal |
Function | In-Line |
Grille Finish | No Grille |
Humidity Sensing | No |
Installation Type | In-Line |
Material | Galvanized Steel, Metal |
Mount Type | Ceiling, Wall |
Night Light | No |
Electrical and Operational Information
Amperage | 2.2 |
Sones | 3.4 |
Speeds | 1 |
Voltage | 120 |
Wattage | 232 |
Electrical and Operational Information
Amperage | 2.2 |
Sones | 3.4 |
Speeds | 1 |
Voltage | 120 |
Wattage | 232 |
Warranty and Product Information
Approved for Commercial Use | No, Yes |
Certifications | UL |
Collection | High Capacity |
Country Of Origin | USA |
Energy Star | No |
Made in America | Yes |
Manufacturer Warranty | 1 Year Limited |
Warranty and Product Information
Approved for Commercial Use | No, Yes |
Certifications | UL |
Collection | High Capacity |
Country Of Origin | USA |
Energy Star | No |
Made in America | Yes |
Manufacturer Warranty | 1 Year Limited |
