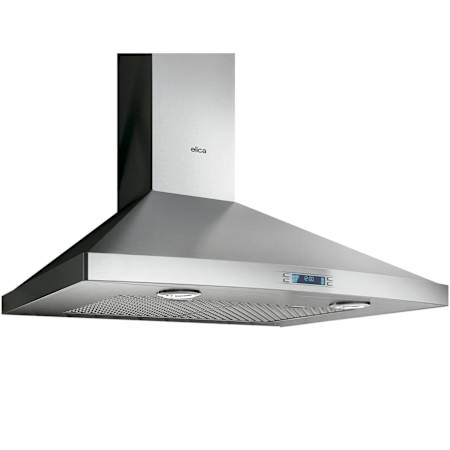

Elica Pilato Series 600 CFM 30 Inch Wide Wall Mounted Range Hood
Model: EPL630S2|Item: bci4549518
from thePilato Collection
$819.00
Finish: Stainless Steel -
Special Order
Details
Features:
- Blower outputs up to 600 CFM to keep your kitchen free of cooking fumes and odors
- Micro hole filters effectively trap and filter out unwanted smoke, odors, and grease
- 2 LED lights illuminate the cooking area (bulbs included)
- Complements items from the Pilato collection
- Hood can be converted to ductless ventilation for improved efficiency and flexible installation options
- Touch controls allow you to easily set the power level of your range hood
- 3 available speeds provide just the right amount of ventilation
- Covered under a 2 year limited parts and labor manufacturer warranty
- Dim light
- Top performance
Product Technologies:
- HUSH System: An exclusive sound deadening technology that effectively reduces sound levels up to 35% more than other comparable range hoods
- CRS (CFM Reduction System): Elica's CRS (CFM Reduction System) enables the installer to reduce the maximum blower CFM to meet local code requirements
Specifications:
- CFM: 600
- Sones: 1.7, 6.8
- Nominal Width: 30"
- Width: 30"
- Height: 10"
- Depth: 21-1/2"
- Duct Size: 6" Round
- Ceiling Height: 89" - 113"
- Height Above Cooktop: 36"
- Amperage: 3.9A
- Voltage: 120V
- Wattage: 450W
Dimensions and Measurements
Ceiling Height (Max) | 113 in. |
Ceiling Height (Min) | 89 in. |
CFM | 600 |
CFM (High) | 600 |
Depth | 21.5 in. |
Duct Size | 6" Round |
Height | 10 in. |
Height Above Cooktop | 36" |
Height Above Cooktop (Max) | 30 in. |
Height Above Cooktop (Min) | 24 in. |
Nominal Width | 30 in. |
Product Weight | 33.07 lbs. |
Width | 30 in. |
Dimensions and Measurements
Ceiling Height (Max) | 113 in. |
Ceiling Height (Min) | 89 in. |
CFM | 600 |
CFM (High) | 600 |
Depth | 21.5 in. |
Duct Size | 6" Round |
Height | 10 in. |
Height Above Cooktop | 36" |
Height Above Cooktop (Max) | 30 in. |
Height Above Cooktop (Min) | 24 in. |
Nominal Width | 30 in. |
Product Weight | 33.07 lbs. |
Width | 30 in. |
Included Components
Available Without Blower | No |
Bulb Included | Yes |
Convertible to Ductless / Recirculating | Yes |
Ductless | No |
Includes Remote | No |
Light Included | Yes |
Included Components
Available Without Blower | No |
Bulb Included | Yes |
Convertible to Ductless / Recirculating | Yes |
Ductless | No |
Includes Remote | No |
Light Included | Yes |
Characteristics and Features
Blower Type | Internal |
Bulb Type | LED |
Control Type | Touch |
Duct Discharge | Vertical |
Filter Type | Micro Hole Filters |
Fingerprint Resistant | No |
Installation Type | Full Installation |
Material | Stainless Steel |
Number of Bulbs | 2 |
Panel Ready | No |
Smart Home | No |
Theme | Modern |
Characteristics and Features
Blower Type | Internal |
Bulb Type | LED |
Control Type | Touch |
Duct Discharge | Vertical |
Filter Type | Micro Hole Filters |
Fingerprint Resistant | No |
Installation Type | Full Installation |
Material | Stainless Steel |
Number of Bulbs | 2 |
Panel Ready | No |
Smart Home | No |
Theme | Modern |
Electrical and Operational Information
Amperage | 3.9 |
Frequency | 60 Hertz |
Sones | 1.7, 6.8 |
Speeds | 3 |
Voltage | 120 |
Wattage | 450 |
Watts Per Bulb | 6.5 |
Electrical and Operational Information
Amperage | 3.9 |
Frequency | 60 Hertz |
Sones | 1.7, 6.8 |
Speeds | 3 |
Voltage | 120 |
Wattage | 450 |
Watts Per Bulb | 6.5 |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | No |
Certifications | UL |
Collection | Pilato |
Country Of Origin | Mexico |
Energy Star | No |
Manufacturer Warranty | 2 Year Limited Parts and Labor |
Outdoor Approved | No |
Title 20 Compliant | Yes |
Title 24 | Yes |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | No |
Certifications | UL |
Collection | Pilato |
Country Of Origin | Mexico |
Energy Star | No |
Manufacturer Warranty | 2 Year Limited Parts and Labor |
Outdoor Approved | No |
Title 20 Compliant | Yes |
Title 24 | Yes |
