The Kwikset 730SYLSQT-514 has been discontinued
** See similar or replacement items below **
Item # bci4257197

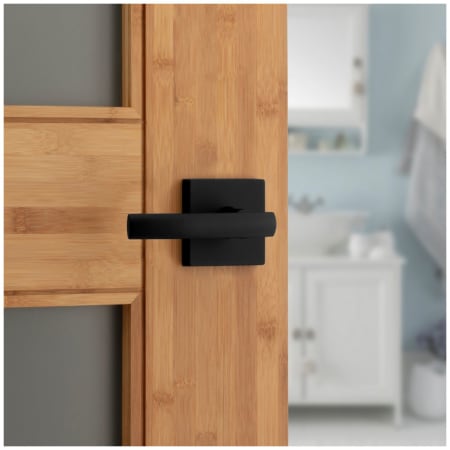

Kwikset Sydney Privacy Door Lever Set with Square Rose
Model: 730SYLSQT-514|Item: bci4257197
from theSydney Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Privacy: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.
Features:
- BHMA grade 2 certified security
- Constructed of high quality metal for lasting durability
- Simple installation with all necessary mounting hardware included
- Covered by limited lifetime manufacturer warranty
Specifications:
- Backset: Adjustable 2-3/8" or 2-3/4"
- Cross Bore: 2-1/8"
- Edge Bore: 1"
- Door Thickness: 1-3/8" to 1-3/4"
- Handing: Reversible Left or Right
- Latch Faceplate: Round Corner
- Material: Zinc
- Handle Length: 4-1/4"
- Handle Projection: 2-3/4"
- Trim Height: 2-5/8"
- Trim Width: 2-5/8"
- Product Weight: 3lb.
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Bore Hole | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore | 1" |
Handle Length | 4.25 in. |
Handle Projection | 2.75 in. |
Product Weight | 3 lbs. |
Trim Height | 2.625 in. |
Trim Width | 2.625 in. |
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Bore Hole | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore | 1" |
Handle Length | 4.25 in. |
Handle Projection | 2.75 in. |
Product Weight | 3 lbs. |
Trim Height | 2.625 in. |
Trim Width | 2.625 in. |
Characteristics and Features
Concealed Screws | No |
Function | Privacy |
Handing | Left, Reversible, Right |
Handle Design | Sydney |
Handle Material | Metal |
Handle Style | Lever |
Latch Faceplate | Round Corner |
Locking Mechanism | Trim Lock |
Material | Zinc |
Panic Proof | No |
Rosette Shape | Square |
Theme | Contemporary |
Characteristics and Features
Concealed Screws | No |
Function | Privacy |
Handing | Left, Reversible, Right |
Handle Design | Sydney |
Handle Material | Metal |
Handle Style | Lever |
Latch Faceplate | Round Corner |
Locking Mechanism | Trim Lock |
Material | Zinc |
Panic Proof | No |
Rosette Shape | Square |
Theme | Contemporary |
Warranty and Product Information
ADA | No |
ANSI Certification | A156.2 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI |
Collection | Sydney |
Fire Rated | No |
Manufacturer Warranty | Limited Lifetime |
Series | Signature Series, Contemporary |
Warranty and Product Information
ADA | No |
ANSI Certification | A156.2 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI |
Collection | Sydney |
Fire Rated | No |
Manufacturer Warranty | Limited Lifetime |
Series | Signature Series, Contemporary |
