The ZLINE 685-30 has been discontinued

** See similar or replacement items below **

ZLINE
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Item # bci3873219

ZLINE Professional 280 - 700 CFM 30 Inch Wide Under Cabinet Range Hood

Model: 685-30
|
Item: bci3873219

Discontinued

We still have product details and accessories, scroll down to see them!

Discontinued

We still have product details and accessories, scroll down to see them!

Details

ZLINE 30 in. 700 CFM Under Cabinet Range Hood in Stainless Steel (685-30) has a modern design and built-to-last quality that would make it a great addition to any home or kitchen remodel. This hood’s high-performance 4-speed motor will provide all the power you need to quietly and efficiently ventilate your kitchen while cooking. Modern features, including built-in lighting and dishwasher-safe stainless steel baffle filters for easy clean-up, will make using this range hood a simple, enjoyable experience for years to come. ZLINE Hoods are ETL Listed and have one of the easiest installations in the industry. ZLINE stands by all products with its Manufacturer Parts Warranty.

Features:

  • Blower outputs up to 700 CFM to keep your kitchen free of cooking fumes and odors
  • Dishwasher safe baffle filters effectively trap and filter out unwanted smoke, odors, and grease
  • 2 LED lights illuminate the cooking area
  • Complements items from the Professional collection
  • Push button controls allow you to easily set the power level of your range hood
  • Covered under a 3 year parts warranty

Specifications:

  • CFM: 280, 420, 560, 700
  • Sones: 1.1, 2.5, 4.3, 5.3
  • Nominal Width: 30"
  • Width: 30"
  • Height: 18"
  • Depth: 24"
  • Duct Size: 8" Round
  • Height Above Cooktop: 30" to 36"
  • Amperage: 5A
  • Voltage: 120V
  • Wattage: 550W
Additional ZLINE Links

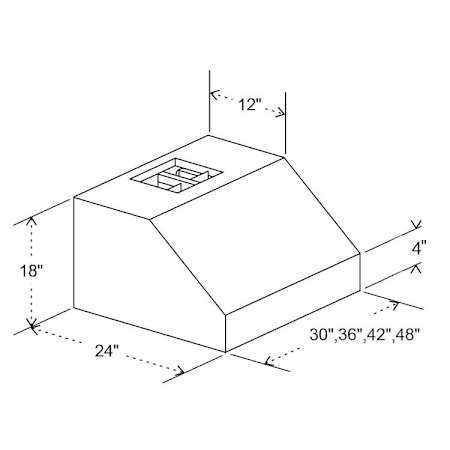

Dimensions and Measurements

CFM
280, 420, 560, 700
CFM (High)
700
Depth
24 in.
Duct Size
8" Round
Height
18 in.
Height Above Cooktop
30" to 36"
Height Above Cooktop (Max)
36 in.
Height Above Cooktop (Min)
30 in.
Nominal Width
30 in.
Product Weight
52 lbs.
Width
30 in.

Dimensions and Measurements

CFM
280, 420, 560, 700
CFM (High)
700
Depth
24 in.
Duct Size
8" Round
Height
18 in.
Height Above Cooktop
30" to 36"
Height Above Cooktop (Max)
36 in.
Height Above Cooktop (Min)
30 in.
Nominal Width
30 in.
Product Weight
52 lbs.
Width
30 in.

Included Components

Available Without Blower
No
Bulb Included
Yes
Convertible to Ductless / Recirculating
No
Ductless
No
Includes Remote
No
Light Included
Yes

Included Components

Available Without Blower
No
Bulb Included
Yes
Convertible to Ductless / Recirculating
No
Ductless
No
Includes Remote
No
Light Included
Yes

Characteristics and Features

Blower Type
Internal
Bulb Type
LED
Control Type
Push Button
Duct Discharge
Vertical
Filter Type
Baffle Filters
Installation Type
Full Installation
Material
Stainless Steel
Number of Bulbs
2
Panel Ready
No

Characteristics and Features

Blower Type
Internal
Bulb Type
LED
Control Type
Push Button
Duct Discharge
Vertical
Filter Type
Baffle Filters
Installation Type
Full Installation
Material
Stainless Steel
Number of Bulbs
2
Panel Ready
No

Electrical and Operational Information

Amperage
5
Frequency
60 Hertz
Maximum Sones
5.3
Minimum Sones
1.1
Sones
1.1, 2.5, 4.3, 5.3
Speeds
4
Voltage
120
Wattage
550

Electrical and Operational Information

Amperage
5
Frequency
60 Hertz
Maximum Sones
5.3
Minimum Sones
1.1
Sones
1.1, 2.5, 4.3, 5.3
Speeds
4
Voltage
120
Wattage
550

Warranty and Product Information

ADA
No
Certifications
ETL
Collection
Professional
Country Of Origin
China
Energy Star
No
Manufacturer Warranty
3 Year Parts
Outdoor Approved
No
Title 24
No

Warranty and Product Information

ADA
No
Certifications
ETL
Collection
Professional
Country Of Origin
China
Energy Star
No
Manufacturer Warranty
3 Year Parts
Outdoor Approved
No
Title 24
No
