The Miseno MH-DBCON-FB has been discontinued
** See similar or replacement items below **
Item # bci3970399

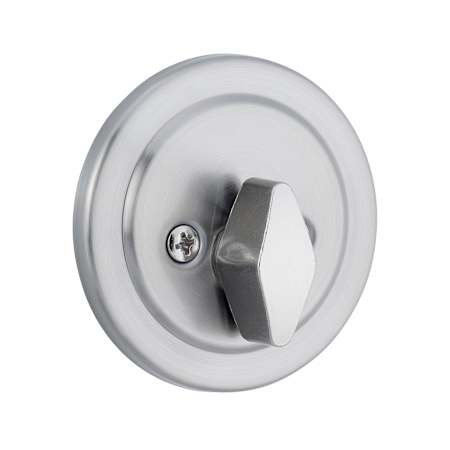

Miseno Single Cylinder Keyed Entry Deadbolt with Round Rose
Model: MH-DBCON-FB|Item: bci3970399
from theDeadbolt Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Single Cylinder: Single cylinder deadbolts are keyed on the exterior with an associated thumb turn on the inside that can quickly and easily lock or unlock the latch mechanism. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Features:
- Exceeds criteria for BHMA Grade 3 certification
- Crafted with solid brass ensuring a durable product
- Intended for left or right handed door configurations
- Easily installs on standard door prep doors
- Includes an adjustable backset and a round corner latch
- Covered under Miseno's 5 year finish and limited lifetime mechanical warranties
- All necessary mounting hardware is included
Specifications:
- Backset: Adjustable 2-3/8" or 2-3/4"
- Cross Bore: 2-1/8"
- Edge Bore: 1"
- Door Thickness: 1-3/8" to 1-3/4"
- Handing: Reversible Left or Right
- Latch Faceplate: Round Corner
- Cylinder: 5 Pin KW1
- Material: Brass
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Bore Hole | 2-1/8" |
Deadbolt Throw | 1" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore | 1" |
Exterior Height | 2.5625 in. |
Exterior Projection | 1 in. |
Exterior Width | 2.5625 in. |
Interior Height | 2.5625 in. |
Interior Width | 2.5625 in. |
Product Weight | 1.5 lbs. |
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Bore Hole | 2-1/8" |
Deadbolt Throw | 1" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore | 1" |
Exterior Height | 2.5625 in. |
Exterior Projection | 1 in. |
Exterior Width | 2.5625 in. |
Interior Height | 2.5625 in. |
Interior Width | 2.5625 in. |
Product Weight | 1.5 lbs. |
Included Components
Interchangeable Core | No |
Included Components
Interchangeable Core | No |
Characteristics and Features
Concealed Screws | No |
Cylinder | 5 Pin KW1 |
Cylinder Type | Single Cylinder |
Function | Keyed Entry |
Handing | Left, Reversible, Right |
Keyway | KW1 |
Latch Faceplate | Round Corner |
Locking Mechanism | Thumbturn |
Material | Brass |
Mortise | No |
Number of Keys | 2 |
Number of pins | 5 |
Removable Core | No |
Rosette Shape | Round |
Solid Construction | Solid Brass |
Theme | Transitional |
Trim Design | Contemporary |
Characteristics and Features
Concealed Screws | No |
Cylinder | 5 Pin KW1 |
Cylinder Type | Single Cylinder |
Function | Keyed Entry |
Handing | Left, Reversible, Right |
Keyway | KW1 |
Latch Faceplate | Round Corner |
Locking Mechanism | Thumbturn |
Material | Brass |
Mortise | No |
Number of Keys | 2 |
Number of pins | 5 |
Removable Core | No |
Rosette Shape | Round |
Solid Construction | Solid Brass |
Theme | Transitional |
Trim Design | Contemporary |
Manufacturer Technology
SmartKey | No |
Manufacturer Technology
SmartKey | No |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | No |
BHMA Certification | Grade 3 |
Collection | Deadbolt |
Country Of Origin | China |
Fire Rated | No |
Manufacturer Warranty | 5 Year Finish, Limited Lifetime Mechanical |
Series | Contemporary |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | No |
BHMA Certification | Grade 3 |
Collection | Deadbolt |
Country Of Origin | China |
Fire Rated | No |
Manufacturer Warranty | 5 Year Finish, Limited Lifetime Mechanical |
Series | Contemporary |
