The ZLINE has been discontinued
** See similar or replacement items below **
Item # bci3400506
ZLINE Classic 760 CFM 30 Inch Wide Wall Mounted Range Hood
Model: |Item: bci3400506
from theClassic Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Features:
- 760 CFM blower can quickly clear the air from your kitchen
- Mesh filter is easily cleaned to preserve grease removing capacity
- LED lighting for illuminating your cooking surface
- Push Button controls allow for easy control of lighting and fan
- May be used as a recirculating range hood in installations where there is no way to vent the air to the outside
- 3 year parts warranty
Specifications:
- CFM: 280, 580, 760
- Sones: 1.1, 4.3, 5.3
- Speeds: 3
- Duct Size: 6" Round
- Duct Discharge: Vertical
- Bulb Type: LED
- Nominal Width: 30
- Height: 4"
- Depth: 17-3/4"
- Ceiling Height: "-"
- Height Above Cooktop: 30" to 36"
- Voltage: 120v
- Wattage: 385
Manufacturer Resources

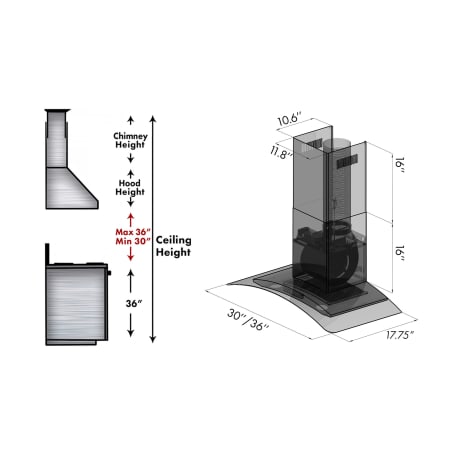

Installation GuideDimensions and Measurements
Ceiling Height (Max) | 106.8 in. |
Ceiling Height (Min) | 86.4 in. |
CFM | 580, 280, 760 |
CFM (High) | 760 |
Depth | 17.75 in. |
Duct Size | 6" Round |
Height | 4 in. |
Height Above Cooktop | 30" to 36" |
Nominal Width | 30 in. |
Product Weight | 50 lbs. |
Width | 30 in. |
Dimensions and Measurements
Ceiling Height (Max) | 106.8 in. |
Ceiling Height (Min) | 86.4 in. |
CFM | 580, 280, 760 |
CFM (High) | 760 |
Depth | 17.75 in. |
Duct Size | 6" Round |
Height | 4 in. |
Height Above Cooktop | 30" to 36" |
Nominal Width | 30 in. |
Product Weight | 50 lbs. |
Width | 30 in. |
Included Components
Available Without Blower | No |
Convertible to Ductless / Recirculating | Yes |
Ductless | No |
Includes Remote | No |
Light Included | Yes |
Included Components
Available Without Blower | No |
Convertible to Ductless / Recirculating | Yes |
Ductless | No |
Includes Remote | No |
Light Included | Yes |
Characteristics and Features
Blower Type | Built-In |
Bulb Type | LED |
Control Type | Push Button |
Duct Discharge | Vertical |
Filter Type | Mesh Filters |
Installation Type | Full Installation |
LED | Yes |
Material | Stainless Steel |
Number of Bulbs | 3 |
Panel Ready | No |
Stainless Steel Grade | 430 |
Characteristics and Features
Blower Type | Built-In |
Bulb Type | LED |
Control Type | Push Button |
Duct Discharge | Vertical |
Filter Type | Mesh Filters |
Installation Type | Full Installation |
LED | Yes |
Material | Stainless Steel |
Number of Bulbs | 3 |
Panel Ready | No |
Stainless Steel Grade | 430 |
Electrical and Operational Information
Amperage | 3.5 |
Fan Speeds | 3 |
Frequency | 60 Hertz |
Maximum Sones | 5.3 |
Minimum Sones | 1.1 |
Sones | 5.3, 1.1, 4.3 |
Speeds | 3 |
Voltage | 120 |
Wattage | 385 |
Electrical and Operational Information
Amperage | 3.5 |
Fan Speeds | 3 |
Frequency | 60 Hertz |
Maximum Sones | 5.3 |
Minimum Sones | 1.1 |
Sones | 5.3, 1.1, 4.3 |
Speeds | 3 |
Voltage | 120 |
Wattage | 385 |
Warranty and Product Information
ADA | No |
Certifications | ETL |
Collection | Classic |
Country Of Origin | China |
Energy Star | No |
Manufacturer Warranty | 3 Year Parts |
Outdoor Approved | No |
Title 24 | No |
Warranty and Product Information
ADA | No |
Certifications | ETL |
Collection | Classic |
Country Of Origin | China |
Energy Star | No |
Manufacturer Warranty | 3 Year Parts |
Outdoor Approved | No |
Title 24 | No |
Related ZLINE Categories
Reviews
(77)
4.6 out of 5 Stars
