The ZLINE 488-304-48 has been discontinued

** See similar or replacement items below **

ZLINE

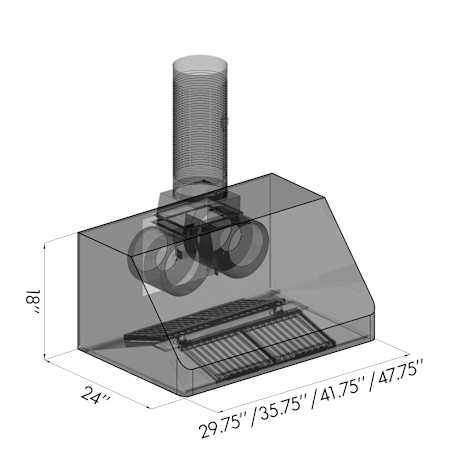

Zline-488-304-48-Dimensions
Zline-488-304-48-Dimensions
Zline-488-304-48-Gallery3
Zline-488-304-48-Gallery5
Zline-488-304-48-gallery
Zline-488-304-48-Gallery1
Zline-488-304-48-Gallery4
Zline-488-304-48-Gallery2
Zline-488-304-48-Gallery6
Item # bci3400604

ZLINE Professional 280 - 700 CFM 48 Inch Wide Outdoor Under Cabinet Range Hood

Model: 488-304-48
|
Item: bci3400604

Discontinued

We still have product details and accessories, scroll down to see them!

Discontinued

We still have product details and accessories, scroll down to see them!

Details

ZLINE 48 in. 700 CFM Outdoor Under Cabinet Range Hood in Stainless Steel (488-304-48) ZLINE 48 in. 700 CFM OUTDOOR Under Cabinet Range Hood. This high performance, 700 CFM Range Hood quietly and efficiently moves large volumes of air from your bbq area. A sharp stainless steel finish on the exterior surface and smooth corners adds a sleek, elegant look to your kitchen, and dishwasher-safe stainless steel baffle filters provide for easy cleanup. Contains everything you need for easy install and enjoyment for years to come. Includes free LED light upgrade.

Features:

  • Blower outputs up to 700 CFM to keep your kitchen free of cooking fumes and odors
  • Dishwasher safe baffle filters effectively trap and filter out unwanted smoke, odors, and grease
  • 4 LED lights illuminate the cooking area
  • Complements items from the Professional collection
  • Push button controls allow you to easily set the power level of your range hood
  • Covered under a 3 year parts warranty

Specifications:

  • CFM: 280, 420, 560, 700
  • Sones: 1.1, 2.6, 4.9, 7
  • Nominal Width: 48"
  • Width: 48"
  • Height: 18"
  • Depth: 24"
  • Duct Size: 8" Round
  • Amperage: 5A
  • Voltage: 120V
  • Wattage: 550W
Additional ZLINE Links

Manufacturer Resources

Installation Guide

Dimensions and Measurements

CFM
280, 420, 560, 700
CFM (High)
700
Depth
24 in.
Duct Size
8" Round
Height
18 in.
Height Above Cooktop
30" to 36"
Nominal Width
48 in.
Product Weight
65 lbs.
Width
48 in.

Dimensions and Measurements

CFM
280, 420, 560, 700
CFM (High)
700
Depth
24 in.
Duct Size
8" Round
Height
18 in.
Height Above Cooktop
30" to 36"
Nominal Width
48 in.
Product Weight
65 lbs.
Width
48 in.

Included Components

Available Without Blower
No
Convertible to Ductless / Recirculating
No
Ductless
No
Includes Remote
No
Light Included
Yes

Included Components

Available Without Blower
No
Convertible to Ductless / Recirculating
No
Ductless
No
Includes Remote
No
Light Included
Yes

Characteristics and Features

Blower Type
Internal
Bulb Type
LED
Control Type
Push Button
Duct Discharge
Vertical
Filter Type
Baffle Filters
Installation Type
Full Installation
LED
Yes
Material
Stainless Steel
Number of Bulbs
4
Panel Ready
No
Stainless Steel Grade
304

Characteristics and Features

Blower Type
Internal
Bulb Type
LED
Control Type
Push Button
Duct Discharge
Vertical
Filter Type
Baffle Filters
Installation Type
Full Installation
LED
Yes
Material
Stainless Steel
Number of Bulbs
4
Panel Ready
No
Stainless Steel Grade
304

Electrical and Operational Information

Amperage
5
Fan Speeds
4
Frequency
60 Hertz
Maximum Sones
7
Minimum Sones
1.1
Sones
1.1, 2.6, 4.9, 7
Speeds
4
Voltage
120
Wattage
550

Electrical and Operational Information

Amperage
5
Fan Speeds
4
Frequency
60 Hertz
Maximum Sones
7
Minimum Sones
1.1
Sones
1.1, 2.6, 4.9, 7
Speeds
4
Voltage
120
Wattage
550

Warranty and Product Information

ADA
No
Certifications
ETL
Collection
Professional
Country Of Origin
China
Energy Star
No
Manufacturer Warranty
3 Year Parts
Outdoor Approved
Yes
Title 24
No

Warranty and Product Information

ADA
No
Certifications
ETL
Collection
Professional
Country Of Origin
China
Energy Star
No
Manufacturer Warranty
3 Year Parts
Outdoor Approved
Yes
Title 24
No
