The Modern Forms FR-W1806-56L27GHWG has been discontinued
** See similar or replacement items below **

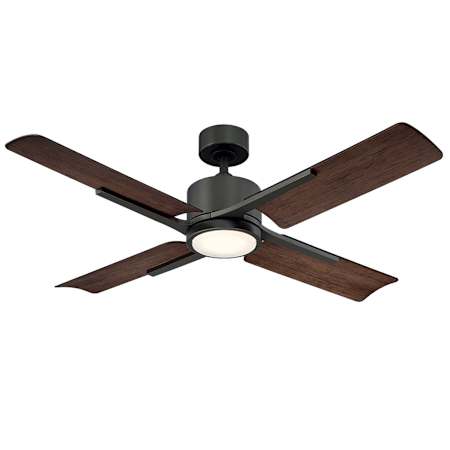

Modern Forms Cervantes 56" 4 Blade Indoor / Outdoor Smart LED Ceiling Fan
Model: FR-W1806-56L27GHWG|Item: bci3830410
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Modern luxury is all about making life simpler-that's exactly what Cervantes does for you. With our Modern Forms app, you can map out schedules, optimize energy use and integrate with smart home devices you already own, like Amazon Alexa and Google Assistant. And the clean, offset blades slice through the air with barely a whisper-that's because the powerful DC motor keeps things running smooth and super quiet.
Features:
- Constructed from aluminum
- Comes with a frosted glass shade
- Fan is controllable by mobile app and remote (included)
- Can be installed on vaulted ceilings
- Fixture includes 4-1/2" downrod(s)
- Integrated LED lighting
- Capable of being dimmed
- CSA, ETL, and UL listed for wet locations
- Title 20 and Title 24 compliant
- Covered by Modern Forms's 1 year parts, 2 year finish, 5 year LED, and lifetime motor manufacturer warranties
Dimensions:
- Height: 13-3/4"
- Width: 56"
- Product Weight: 21 lbs
- Wire Length: 80"
- Canopy Width: 6"
- Canopy Depth: 6"
Blade Specifications:
- Number of Blades: 4
- Blade Span: 56"
- Blades Included: Yes
- Blade Pitch: 14°
- Reversible Blades: No
- Fan Blade Material: ABS
- Blade Length: 23-5/8"
Motor Specifications:
- Speeds: 6
- CFM: 4275
- RPM: 98
Electrical Specifications:
- Bulb Base: Integrated LED
- Light Kit Included: Yes
- Wattage: 49 watts
- Voltage: 120 volts
- Amperage: 0.2
- Color Temperature: 2700K and 3500K
- Color Rendering Index: 90CRI
- Lumens: 1600
Dimensions and Measurements
Blade Length | 23.63 in. |
Blade Pitch | 14 Degrees |
Blade Span | 56 in. |
Canopy Depth | 6 in. |
Canopy Height | 2.5 in. |
Canopy Width | 6 in. |
CFM | 4275 |
CFM (High) | 6577 |
CFM (Low) | 1973 |
Downrod Size(s) | 4.5 in. |
Height | 13.75 in. |
Motor Size | 125 mm |
Product Weight | 21 lbs. |
Width | 56 in. |
Wire Length | 80 in. |
Dimensions and Measurements
Blade Length | 23.63 in. |
Blade Pitch | 14 Degrees |
Blade Span | 56 in. |
Canopy Depth | 6 in. |
Canopy Height | 2.5 in. |
Canopy Width | 6 in. |
CFM | 4275 |
CFM (High) | 6577 |
CFM (Low) | 1973 |
Downrod Size(s) | 4.5 in. |
Height | 13.75 in. |
Motor Size | 125 mm |
Product Weight | 21 lbs. |
Width | 56 in. |
Wire Length | 80 in. |
Included Components
Blades Included | Yes |
Bulb Included | Yes |
Controller Included | Yes |
Downrod(s) Included | Yes |
Includes Receiver | Yes |
Light Kit Included | Yes |
Shade | Yes |
Included Components
Blades Included | Yes |
Bulb Included | Yes |
Controller Included | Yes |
Downrod(s) Included | Yes |
Includes Receiver | Yes |
Light Kit Included | Yes |
Shade | Yes |
Characteristics and Features
App Compatibility | Amazon Alexa, Control4, Google Assistant, Modern Forms App, SmartThings |
Blade Finish | Dark Wood |
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Characteristics | Wood |
Color Temperature | 2700K, 3500K |
Control Type | Mobile App, Remote |
Device Compatibility | Android, Apple iOS Device |
Dimmable | Yes |
Fan Blade Material | ABS |
Fan Type | Hanging |
Glass Features | Frosted Glass |
LED | Yes |
Light Direction | Down Lighting |
Light Kit Compatible | Yes |
Low Ceiling Adaptable | No |
Marine Grade | No |
Material | Aluminum |
Motor | DC Motor |
Number of Blades | 4 |
Number of Bulbs | 1 |
Number of Light Source(s) | 1 |
Reversible Blades | No |
Reversible Motor | Yes |
Shade Color | Frosted |
Shade Material | Glass |
Shade Shape | Disk |
Sloped Ceiling Compatible | Yes |
Smart Home | Yes |
Theme | Contemporary |
Vintage Edison Bulb | No |
Wireless Communication | Bluetooth, WiFi |
Characteristics and Features
App Compatibility | Amazon Alexa, Control4, Google Assistant, Modern Forms App, SmartThings |
Blade Finish | Dark Wood |
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Characteristics | Wood |
Color Temperature | 2700K, 3500K |
Control Type | Mobile App, Remote |
Device Compatibility | Android, Apple iOS Device |
Dimmable | Yes |
Fan Blade Material | ABS |
Fan Type | Hanging |
Glass Features | Frosted Glass |
LED | Yes |
Light Direction | Down Lighting |
Light Kit Compatible | Yes |
Low Ceiling Adaptable | No |
Marine Grade | No |
Material | Aluminum |
Motor | DC Motor |
Number of Blades | 4 |
Number of Bulbs | 1 |
Number of Light Source(s) | 1 |
Reversible Blades | No |
Reversible Motor | Yes |
Shade Color | Frosted |
Shade Material | Glass |
Shade Shape | Disk |
Sloped Ceiling Compatible | Yes |
Smart Home | Yes |
Theme | Contemporary |
Vintage Edison Bulb | No |
Wireless Communication | Bluetooth, WiFi |
Electrical and Operational Information
Amperage | 0.2 |
Average Hours | 50000 Hours |
Color Rendering Index (CRI) | 90 |
Energy Efficiency (CFM / Watt) | 213 |
Lumens | 1600 |
Power Source | Hardwired |
Reverse Switch Location | Remote, Smart Device |
RPM | 98 |
RPM (High) | 153 |
RPM (Low) | 42 |
Speeds | 6 |
Voltage | 120 |
Voltage Type | Line Voltage (110-120V) |
Wattage | 49 |
Watts Per Bulb | 20 |
Electrical and Operational Information
Amperage | 0.2 |
Average Hours | 50000 Hours |
Color Rendering Index (CRI) | 90 |
Energy Efficiency (CFM / Watt) | 213 |
Lumens | 1600 |
Power Source | Hardwired |
Reverse Switch Location | Remote, Smart Device |
RPM | 98 |
RPM (High) | 153 |
RPM (Low) | 42 |
Speeds | 6 |
Voltage | 120 |
Voltage Type | Line Voltage (110-120V) |
Wattage | 49 |
Watts Per Bulb | 20 |
Warranty and Product Information
Certifications | CSA, ETL, UL |
Collection | Cervantes |
Country Of Origin | China |
Energy Star | No |
Location Rating | Wet Location |
Manufacturer Warranty | 1 Year Parts, 2 Year Finish, 5 Year LED, Lifetime Motor |
Outdoor Approved | Yes |
Title 20 Compliant | Yes |
Title 24 | Yes |
Warranty and Product Information
Certifications | CSA, ETL, UL |
Collection | Cervantes |
Country Of Origin | China |
Energy Star | No |
Location Rating | Wet Location |
Manufacturer Warranty | 1 Year Parts, 2 Year Finish, 5 Year LED, Lifetime Motor |
Outdoor Approved | Yes |
Title 20 Compliant | Yes |
Title 24 | Yes |
