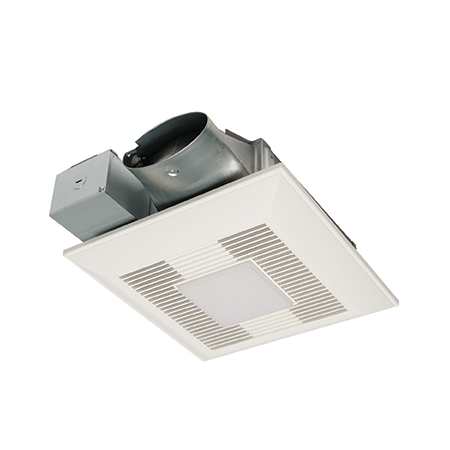

Panasonic 100 CFM 0.6 Sone Condensation Sensing Energy Star Certified Bath Fan with LED Light and Pick-A-Flow Speed Selector
Model: FV-0510VSCL1|Item: bci3164788
Details
The Panasonic FV-0510VSCL1 WhisperValue DC Ventilation Fan features an LED light and condensation sensor that helps control bathroom condensation and remove humidity. This fan is ideal for residential construction (single and multi-family) and manufactured homes. It features Panasonic’s revolutionary ECM motor with SmartFlow optimum CFM technology and incorporates a Pick-A-Flow airflow selector switch that provides you with the flexibility and control to select your required airflow (50-80-100 CFM). This extremely thin profile ventilation fan is UL listed for ceiling or wall mount and its unique L-shaped bracket design provides strong support and makes for easy installation. The WhisperValue DC Ventilation Fan is Energy Star certified and is engineered to comply with Energy Star 4.0 requirements for increased efficiency (CFM/Watt), ensuring low cost and energy-efficient operation.
Features:
- Vent Fan with Light and Humidity Control: This slim, whisper quiet vent fan features a condensation sensor to help control and remove humidity and a dimmable 3000K LED light with low power nightlight for warm, energy-efficient illumination; Duct diameter: 4" oval
- Customizable Airflow: This Energy Star-certified fan features a revolutionary DC/ECM motor and Pick-A-Flow technology that allows you to select your desired airflow from 50, 80 or 100 CFM at the flip of a switch for your room size and usage needs
- Easy Installation: A sleek 3-3/8" housing depth fits effortlessly into tight spaces, and the unique L-shaped bracket simplifies installation and provides strong support; UL listed for ceiling, wall, and tub/shower enclosure mounts when GFCI protected.
- Explore Panasonic's Selection: Panasonic offers a wide range of vent fans including fans with LED lights, timers, heaters, and condensation sensors for humidity control, plus installation kits, soffit vents, replacement motors and fan cover grilles
- Healthy Living Begins with Clean Indoor Air: Ensure a healthy home for your family with a high-performance Panasonic ventilation systems, air purification devices and HVAC solutions
- CFM: 50
- CFM: 80
- CFM: 100
- Duct Size: 4" Oval
- Grille Length: 13"
- Grille Width: 13"
- Housing Length: 10-1/2"
- Housing Width: 10-1/2"
- Lighting: LED
- Lumins: 700 lu
- HVI Certified: Yes
- Voltage: 120 v
Dimensions and Measurements
CFM | 50, 80, 100 |
Duct Size | 4" Oval |
Grille Length | 13 in. |
Grille Width | 13 in. |
Housing Length | 10.5 in. |
Housing Width | 10.5 in. |
Product Weight | 12 lbs. |
Dimensions and Measurements
CFM | 50, 80, 100 |
Duct Size | 4" Oval |
Grille Length | 13 in. |
Grille Width | 13 in. |
Housing Length | 10.5 in. |
Housing Width | 10.5 in. |
Product Weight | 12 lbs. |
Included Components
Bulb Included | Yes |
Heater Included | No |
Light Included | Yes |
Motion Sensor | No |
Included Components
Bulb Included | Yes |
Heater Included | No |
Light Included | Yes |
Motion Sensor | No |
Characteristics and Features
Bulb Type | LED |
Decorative | No |
Duct Discharge | Horizontal |
Fan Type | Bath Fan |
Grille Finish | White |
Grille Shape | Square |
Humidity Sensing | Yes |
Installation Type | Full Install |
Mount Type | Wall, Ceiling |
Characteristics and Features
Bulb Type | LED |
Decorative | No |
Duct Discharge | Horizontal |
Fan Type | Bath Fan |
Grille Finish | White |
Grille Shape | Square |
Humidity Sensing | Yes |
Installation Type | Full Install |
Mount Type | Wall, Ceiling |
Electrical and Operational Information
Amperage | 0.39 |
Frequency | 60 Hertz |
Power Source | Hardwired |
RPM | 708, 797, 902 |
Sones | 0.3, 0.4, 0.9 |
Speeds | 3 |
Voltage | 120 |
Wattage | 46.8 |
Electrical and Operational Information
Amperage | 0.39 |
Frequency | 60 Hertz |
Power Source | Hardwired |
RPM | 708, 797, 902 |
Sones | 0.3, 0.4, 0.9 |
Speeds | 3 |
Voltage | 120 |
Wattage | 46.8 |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | CSA, ASHRAE, HVI, ETL, UL |
Energy Star | Yes |
Location Rating | Damp Location |
Manufacturer Warranty | 3 Year Parts, 5 Year LED, 6 Year Motor |
Series | WhisperValue DC |
Title 24 | Yes |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | CSA, ASHRAE, HVI, ETL, UL |
Energy Star | Yes |
Location Rating | Damp Location |
Manufacturer Warranty | 3 Year Parts, 5 Year LED, 6 Year Motor |
Series | WhisperValue DC |
Title 24 | Yes |
