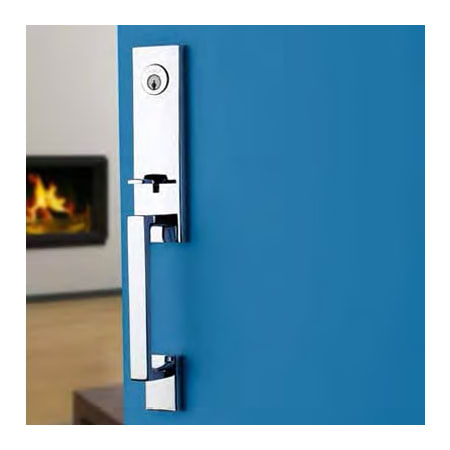

Baldwin Seattle Standard C Keyway Single Cylinder Keyed Entry Handleset with Modern Knob and Modern Square Interior Trim from the Reserve Collection

The Baldwin Seattle handleset features geometric precision and minimalistic design which accentuates homes with contemporary style. With a choice of interior lever or knob and rosette, the Seattle handleset is customizable to match one's personal tastes.

Features:

• Tested to exceed ANSI/BHMA Grade 2 security
• Solid forged brass construction built to last a lifetime.
• Reversible handing for maximum versatility
• Includes all mounting hardware for quick and easy installation
• Solid brass deadbolt latch with hardened steel roll pin for additional strength and security.
• Interior comes in same finish as exterior. If split finish is desired, please contact customer service.
• Accommodates door thickness 1-3/8" to 2". Up to 2-1/2" thick door with service part kit (Part Number: 8BR0701).
• Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty

Product Technologies:

Single Cylinder Function: Baldwin's single cylinder handleset has a keyed cylinder on the exterior and a thumb turn on the interior. Unlocking and locking the deadbolt is done by either a key on the exterior or via the thumb turn on the interior. This handleset includes both the interior and the exterior for a complete entrance solution.

Solid Brass Construction: Baldwin Reserve Series products are constructed from solid brass - providing a more luxurious, higher quality feel than door hardware made with lesser metals. When you hold a Baldwin product in your hand, you will immediately notice the difference that solid brass makes – it is heavier, stronger, and smoother than most of the door hardware on the market today.

Specifications:

• Backset: Adjustable 2-3/8" or 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/4" to 2-1/2"
• Handing: Reversible Left or Right
• Knob Diameter: 2.34375"
• Projection: 2.40625"
• Center to Center: 5.5"
• Grip Center to Center: 8.40625"
• Latch Faceplate: Drive-In, Round Corner, or Square Corner
• Cylinder: 5 Pin C
• Material: Brass
• Manufacturer Warranty: 25 Year Finish and Limited Lifetime Mechanical

• FD.SEAXCON.CSR: Full Dummy Set
• SC.SEAXCON.CSR (This Model): Single Cylinder
