The Elan 83616 has been discontinued

** See similar or replacement items below **

Elan
Elan-Rissel Bath Bar-Close Up
Elan-Rissel Bath Bar-Close Up

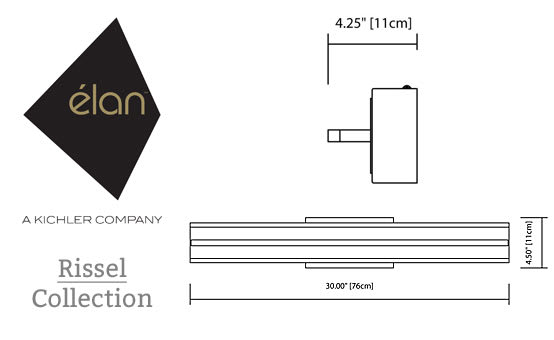

Elan-Rissel Bath Bar-Line Drawing
Elan-Rissel Bath Bar-Catalog Page
Item # bci2781635

Elan Rissel Bath Bar

Model: 83616
|
Item: bci2781635

Discontinued

We still have product details and accessories, scroll down to see them!

Discontinued

We still have product details and accessories, scroll down to see them!

Details

Features:

  • Etched acrylic diffuser
  • Durable steel construction
  • 1157 lumen output is similar to a 75W incandescent light
  • Fully compatible with most aftermarket dimmers
  • Warm white LEDs create a friendly and inviting atmosphere that's perfect for homes, restaurants, offices, and light commercial spaces
  • 80+ CRI LEDs produce top-notch color quality in the industry
  • ETL listed for dry locations only
  • Fully covered under warranty for 3 years

Dimensions:

  • Height: 4.72"
  • Width: 30"
  • Extension 4.33"

Electrical Specifications:

  • Number of Bulbs: 1
  • Bulb Included: Yes
  • Bulb Type: LED
  • Socket Type: None (Integrated LED Engine)
  • Total Wattage: 25.2
  • Lumen Output: 1157
  • Color Temperature: 3200K (Warm White)
  • Color Rendering Index (CRI): 85
  • Dimmable: Yes
  • Voltage: 120 (U.S. Standard Line Voltage)
Additional Elan Links

Dimensions and Measurements

Depth
4.33 in.
Extension
4.33 in.
Height
4.72 in.
Product Weight
6.39 lbs.
Width
30 in.

Dimensions and Measurements

Depth
4.33 in.
Extension
4.33 in.
Height
4.72 in.
Product Weight
6.39 lbs.
Width
30 in.

Included Components

Bulb Included
Yes
Shade
Yes

Included Components

Bulb Included
Yes
Shade
Yes

Characteristics and Features

Bulb Base
Integrated LED
Bulb Type
LED
Bulb Visible
No
Color Temperature
3200K
Dimmable
Yes
Energy Efficient
Yes
LED
Yes
Light Direction
Down Lighting
Material
Steel
Number of Bulbs
1
Number of Light Source(s)
1
Shade Color
Nickel
Shade Material
Synthetic
Theme
Modern

Characteristics and Features

Bulb Base
Integrated LED
Bulb Type
LED
Bulb Visible
No
Color Temperature
3200K
Dimmable
Yes
Energy Efficient
Yes
LED
Yes
Light Direction
Down Lighting
Material
Steel
Number of Bulbs
1
Number of Light Source(s)
1
Shade Color
Nickel
Shade Material
Synthetic
Theme
Modern

Electrical and Operational Information

Color Rendering Index (CRI)
85
Lumens
1157
Power Source
Hardwired
Voltage
120
Voltage Type
Line Voltage (110-120V)
Wattage
25.2

Electrical and Operational Information

Color Rendering Index (CRI)
85
Lumens
1157
Power Source
Hardwired
Voltage
120
Voltage Type
Line Voltage (110-120V)
Wattage
25.2

Warranty and Product Information

Certifications
ETL
Location Rating
Dry Location
Manufacturer Warranty
3 Year

Warranty and Product Information

Certifications
ETL
Location Rating
Dry Location
Manufacturer Warranty
3 Year
