The WAC Lighting HR-3LED-H18D1-ICAC has been discontinued
** See similar or replacement items below **
Item # bci3181673
WAC Lighting 3.5 Inch Tesla LED New Construction Housing - Chicago Plenum
Model: HR-3LED-H18D1-ICAC|Item: bci3181673
from theTesla Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Tesla series includes a high performance integrated LED with a state of the art light engine that delivers maintenance-free optics with endless amounts of specifications including shape of trim, adjustability, color temperature, and beam distribution
Features
- For Tesla 3.5 Inch Trims
- Arms extend from 14-1/2" to 25"
- Fits ceilings from 1/2" to 3/4"
- Universal voltage operates at 120-277 volts
- Designed for commercial or residential use
- Housing is ice-rated and airtight
- Die-cast aluminum construction with powder coated finish
- Integrated 21.5 watt LED lighting
- Capable of being dimmed
- UL and CUL rated for damp locations
- Energy Star approved for energy efficiency
- 2 year warranty on the finish with a 5 year functional warranty

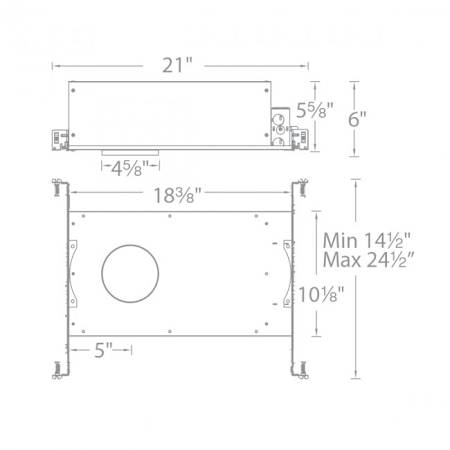

Dimensions
- Height: 6"
- Width: 21"
- Product Weight: 7.3 lbs
- Cutout Size: 4-5/8"
Electrical Specifications
- Max Wattage: 21.5w
- Number of Light Source(s): 1
- Voltage: 120, 240, and 277 volts
Dimensions and Measurements
Cutout Size | 4.63 in. |
Depth | 6.675 in. |
Height | 6 in. |
Maximum Width | 25 in. |
Minimum Width | 14.25 in. |
Product Weight | 7.32 lbs. |
Trim Size | 3.5 in. |
Width | 21 in. |
Dimensions and Measurements
Cutout Size | 4.63 in. |
Depth | 6.675 in. |
Height | 6 in. |
Maximum Width | 25 in. |
Minimum Width | 14.25 in. |
Product Weight | 7.32 lbs. |
Trim Size | 3.5 in. |
Width | 21 in. |
Included Components
Bulb Included | Yes |
Shade | No |
Included Components
Bulb Included | Yes |
Shade | No |
Characteristics and Features
Airtight | Yes |
Base Color | Nickel |
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Dimmable | Yes |
Energy Efficient | Yes |
Housing Type | New Construction Housing |
LED | Yes |
Light Direction | Down Lighting |
Material | Aluminum |
Number of Bulbs | 1 |
Number of Light Source(s) | 1 |
Theme | Contemporary |
Characteristics and Features
Airtight | Yes |
Base Color | Nickel |
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Dimmable | Yes |
Energy Efficient | Yes |
Housing Type | New Construction Housing |
LED | Yes |
Light Direction | Down Lighting |
Material | Aluminum |
Number of Bulbs | 1 |
Number of Light Source(s) | 1 |
Theme | Contemporary |
Electrical and Operational Information
Power Source | Hardwired |
Voltage | 120, 240, 277 |
Wattage | 21.5 |
Watts Per Bulb | 21.5 |
Electrical and Operational Information
Power Source | Hardwired |
Voltage | 120, 240, 277 |
Wattage | 21.5 |
Watts Per Bulb | 21.5 |
Warranty and Product Information
Certifications | ETL, UL |
Collection | Tesla |
Country Of Origin | China |
Energy Star | Yes |
IC Rating | IC |
Location Rating | Damp Location |
Manufacturer Warranty | 5 Year |
Series | 3.5 Inch Tesla |
Warranty and Product Information
Certifications | ETL, UL |
Collection | Tesla |
Country Of Origin | China |
Energy Star | Yes |
IC Rating | IC |
Location Rating | Damp Location |
Manufacturer Warranty | 5 Year |
Series | 3.5 Inch Tesla |
