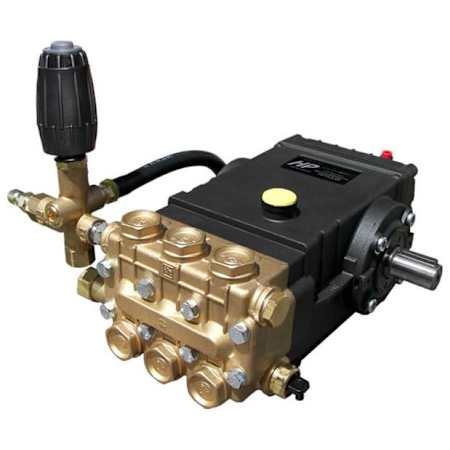

Pressure-Pro Pressure-Pro Fully Plumbed HP HP5535 3500 PSI 5.5 GPM (Solid Shaft) Triplex Pressure Washer Pump w/ Plumbing Kit (Belt Drive)

Product Information:

• Why Repair A Worn Out Pump?
  • Fully Plumbed kits are ready to go
  • Get a great quality replacement assembly for less than a repair


• Ready To Install: Replaces 3500 PSI, 5.5 GPM pumps


• VRT3-310 EZ Unloader: Adjustable pressure to suit the task at hand


• Solid Ceramic Plungers: Continuously lubricated packings for maximum durability


• Fits Many Different Brands Of Pressure Washer
  • Inlet port thread 1/2-14 BSPP-F; discharge port thread 3/8-19 BSPP-F
  • 24mm solid shaft; 1450 RPM' 20mm bore; 16mm stroke
  • 165° F max water temperature


• Shaft Size Measurements Must Be Precise


• Be Sure To Measure The Shaft & Flange Bolt Holes Accurately!
  • There is a 25% restock fee for returned pumps
  • See the Owner's Manual (under the Specs tab) for dimensions


• Please Call Us For Sizing Assistance w/ Information Below:
  • This is a bare pump; you will need to re-use your current fittings or purchase new ones (sold separately)
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)


• ***Shaft Size Measurements Must Be Precise***: 4. Engine Brand and HP (model # if available would be helpful)


• ***Shaft Size Measurements Must Be Precise***

Specifications:

• CARB Approved
• Warranty: 90 Day Commercial and 90 Day Consumer

Dimensions:

• Height: 6-7/8"
• Width: 9-3/16"
• Length: 12-3/16"
• Product Weight: 34.6 lbs
• Outflow Connection: 3/8" Threaded (Female)
