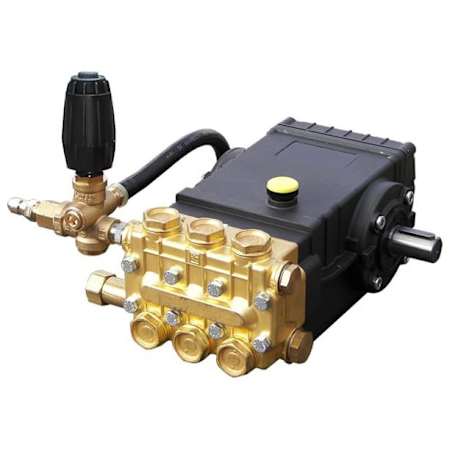

Pressure-Pro Pressure-Pro Fully Plumbed General HP4040 4000 PSI 4.0 GPM (Solid Shaft) Triplex Pressure Washer Pump w/ Plumbing Kit (Belt Drive)

Product Information:

• High Performance Series Replacement Pump: Popular pump fits many different pressure washer brands


• Forged Brass Manifold
  • Exclusive lifetime Factory Warranty protects your investment
  • Over-sized connecting rods for maximum life


• Solid Ceramic Plungers: Run cooler, last longer


• Unitized Stainless Steel Inlet & Discharge Valves: Durable components survive commercial conditions


• Oil Gauge: Easy to monitor from the back & side of the pump


• Designed For Professional Grade Pressure Washers
  • 24mm (.945in) dia.shaft; 20mm (.787in) bore; 12mm (.472in) stroke
  • 1450 RPM; 40.6oz crankcase; handles up to 165°F water
  • Inlet port thread: 1/2-14 BSPP-F; outlet port thread: 3/8-19 BSPP-F


• Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
  • There is a 25% restock fee on returned pumps
  • See the Owner's Manual (under the Specs tab) for dimensions


• Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)


• ***Shaft Size Measurements Must Be Precise***

Specifications:

• CARB Approved
• Warranty: 90 Day Commercial and 90 Day Consumer

Dimensions:

• Height: 6-7/8"
• Width: 9-3/16"
• Length: 12-3/16"
• Product Weight: 34.6 lbs
• Outflow Connection: 3/8" Snap Coupler (Male)
