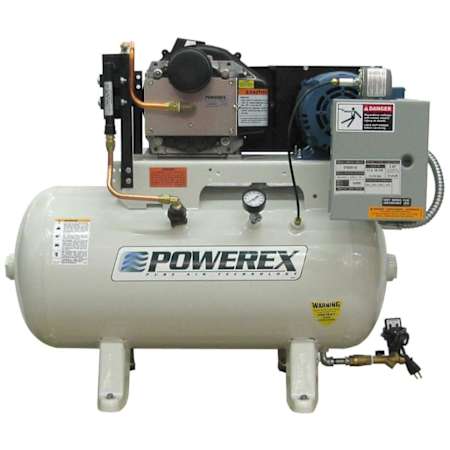

Powerex 5 HP 60 Gal 145 Max PSI Stationary Electric (208, 230 Volt 3 Phase) Scroll Air Compressor

Product Information:

• ISO 8573-1 Class Zero High Pressure Oil-Free Air (Not For Medical Use)
  • Perfect for any application where completely clean, dry air is required
  • Ideal for manufacturing, instrumentation, pharmaceutical production, laboratories, etc.


• Integral Aftercooler Design: Cools the compressed air, allowing water droplets to condense out of the air flow for drier air


• Easy Installation: Mounting the compressor on top of the tank maximizes available floor space


• Extremely Quiet & Energy Efficient: 72 dBA is perfect for situations where excessive noise or vibration may be an issue; about as loud as a vacuum cleaner


• Low Maintenance Cost
  • The oil-free scroll design eliminates the need for costly oil changes; the few moving parts make it extremely durable
  • No oil contamination of your end product, powered equipment, or the environment


• UL Listed Magnetic Starter: Safely & reliably starts the compressor; provides under-voltage and overload protection


• 60-Gallon Air Tank With Automatic 115V No-Loss Tank Drain
  • Certified to meet ASME standards for your safety; rated up to 200 PSI (145 PSI maximum working pressure)
  • Simplifies maintenance- just set the timer for regular draining of the air receiver; will not affect air pressure


• Limited Standard Factory Warranty Covers Defects In Materials & Workmanship: 12 months / 5,000 hours of use; covers the airend for 36 months / 10,000 hours whichever comes first

Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 41"
• Width: 23"
• Length: 64"
• Product Weight: 300 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Pressure Gauge Included
• Filter Included

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 3/4"
• Tank Size: 60

Pump Specifications:

• After Cooler Included
• Lubrication Type: Oil Free
• CFM: 13
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 5 HP
• Amperage: 14A
• dB Rating: 72
• Voltage: 208, 230V
