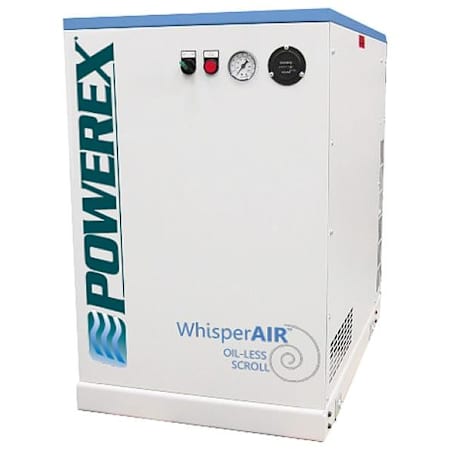

Powerex 3 HP 13 Gal 145 Max PSI Stationary Electric (208 Volt 3 Phase) Scroll Air Compressor

Product Information:

• Completely Oil-Less, High Pressure, 100% Duty Cycle Scroll Air Compressor (Not For Medical Use): Perfect for any application where completely clean, dry air is required. Ideal for manufacturing, instrumentation, pharmaceutical production, laboratories, etc.


• WhisperAIR Sound Enclosure Cabinet: 49 dBA allows work near the compressor; about the same as a quiet conversation at home. The rigid steel frame with powder-coated panels is lined with sound-deadening insulation; vibration isolators reduce noise


• Integral Air-Cooled Aftercooler Design: Cools the compressed air, allowing water droplets to condense out of the air flow for drier air


• Patented Bearing Re-Grease Feature
  • Allows maintenance from the front of the pump, cutting service time in half
  • Main bearings are housed in durable cast iron, preventing fretting & premature failure of the bearing race


• Patented Tip Seal Design: Yields the highest flow rates and longevity of any other dry scroll compressor


• 13 Gallon ASME Air Tank In The Enclosure: Rated to 175 PSI, 145 PSI maximum operating pressure with safety relief valve & manual tank drain


• Front Mounted Control Panel: Intuitive controls for easy operation: automatic stop/start, hi-temp shutdown indicator, hourmeter, & pressure gauge


• 3-HP ODP Motor & Inlet Filtration With Replaceable Element: Compact footprint, energy efficient operation, low maintenance & environmentally friendly design


• Limited Standard Factory Warranty Covers Defects In Materials & Workmanship: 12 months / 5,000 hours of use; covers the airend for 36 months / 10,000 hours whichever comes first

Specifications:

• Certifications: ASME, CSA, and UL
• Fuel Type: Electric
• Height: 33"
• Width: 21"
• Length: 34"
• Product Weight: 310 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Pressure Gauge Included
• Filter Included

Tank Specifications:

• Tank Outlet Size: 3/8"
• Tank Size: 13

Pump Specifications:

• After Cooler Included
• Lubrication Type: Oil Free
• CFM: 7
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 3 HP
• Amperage: 9A
• dB Rating: 49
• Voltage: 208V
