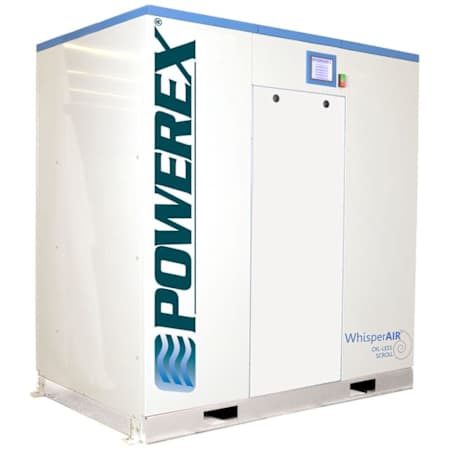

Powerex 40 HP 145 Max PSI Stationary Electric (460 Volt 3 Phase) Scroll Air Compressor

Product Information:

• Completely Oil-Less, High Pressure Octoplex 100% Duty Cycle Scroll Air Compressor (Not For Medical Use)
  • Eight 5-HP pumps & motors with alternating controls for balanced unit wear & performance up to 145 PSI
  • Delivers completely clean, dry air ideal for manufacturing, pharmaceutical production, labs, etc.


• WhisperAIR Sound Enclosure Cabinet
  • 60 dBA allows work near the compressor; about the same as a conversation in a restaurant
  • Rigid steel frame has powder-coated panels lined with sound-deadening insulation; vibration isolators reduce noise


• Programmable, Touch-Screen Logic Controller
  • Operates compressor modules as needed to meet demand with one or more motor/pump compressors
  • Displays hours, high temp & motor overload alarms, run indication, & hours to scheduled maintenance for each module
  • Pressure settings are user adjustable within factory predetermined setting limits


• Eight 5-HP TEFC, NEMA Motors & Two Inlet Filters With Replaceable Elements
  • Compact footprint, energy efficient operation, low maintenance & environmentally friendly design
  • Motor circuit breakers with lockable disconnects are provided for each compressor module
  • Each inlet filter serves half the compressor modules in the system; located behind an easy-access panel


• Integral Air-Cooled Aftercooler Design: Cools the compressed air, allowing water droplets to condense out of the air flow for drier air

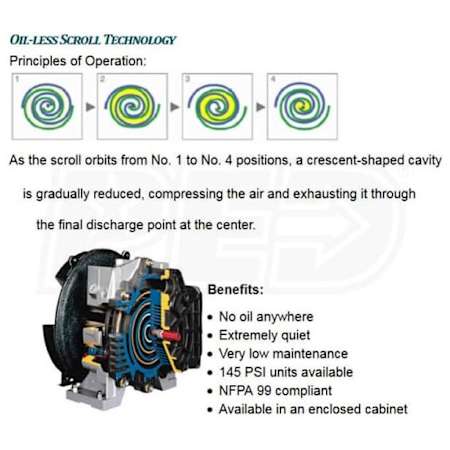

• Patented Tip Seal Design: Yields the highest flow rates and longevity of any other dry scroll compressor


• Limited Standard Factory Warranty Covers Defects In Materials & Workmanship: 12 months / 5,000 hours of use; covers the airend for 36 months / 10,000 hours whichever comes first.

Specifications:

• Certifications: NEMA and UL
• Fuel Type: Electric
• Height: 62"
• Width: 58"
• Length: 38"
• Product Weight: 2000 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Pressure Gauge Included
• Filter Included

Tank Specifications:

• Tank Outlet Size: 1"

Pump Specifications:

• After Cooler Included
• Lubrication Type: Oil Free
• CFM: 100
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 40 HP
• Amperage: 53.9A
• dB Rating: 60
• Voltage: 460V
