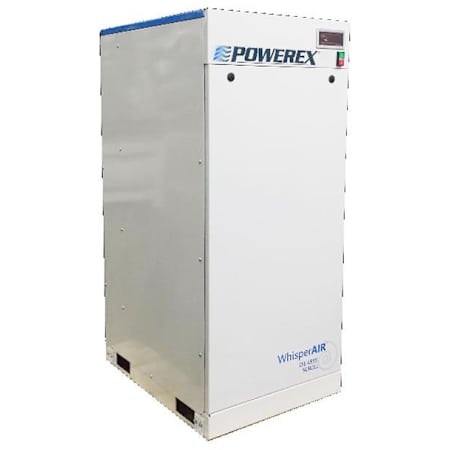

Powerex 10 HP 116 Max PSI Stationary Electric (208 Volt 3 Phase) Scroll Air Compressor

Product Information:

• Completely Oil-Less, Duplex 100% Duty Cycle Scroll Air Compressor (Not For Medical Use)
  • Two 5-HP pumps & motors with alternating controls for balanced unit wear & performance
  • Delivers completely clean, dry air ideal for manufacturing, pharmaceutical production, labs, etc.


• WhisperAIR Sound Enclosure Cabinet
  • 53 dBA allows work near the compressor; about the same as a conversation
  • Rigid steel frame has powder-coated panels lined with sound-deadening insulation; vibration isolators reduce noise


• Programmable, Touch-Screen Logic Controller
  • Operates compressor modules as needed to meet demand with one or both motor/pump compressors
  • Displays hours, high temp & motor overload alarms, run indication, & hours to scheduled maintenance for each module
  • Pressure settings are user adjustable within factory predetermined setting limits


• Two 5-HP TEFC, NEMA Motors & Single Inlet Filtration With Replaceable Element: Compact footprint, energy efficient operation, low maintenance & environmentally friendly design


• Integral Air-Cooled Aftercooler Design: Cools the compressed air, allowing water droplets to condense out of the air flow for drier air


• Patented Tip Seal Design: Yields the highest flow rates and longevity of any other dry scroll compressor


• Limited Standard Factory Warranty Covers Defects In Materials & Workmanship: 12 months / 5,000 hours of use; covers the airend for 36 months / 10,000 hours whichever comes first.

Specifications:

• Certifications: ASME, NEMA, and UL
• Fuel Type: Electric
• Height: 61"
• Width: 38"
• Length: 26"
• Product Weight: 825 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Pressure Gauge Included
• Filter Included

Pump Specifications:

• After Cooler Included
• Lubrication Type: Oil Free
• CFM: 30
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 10 HP
• Amperage: 30.8A
• dB Rating: 53
• Voltage: 208V
