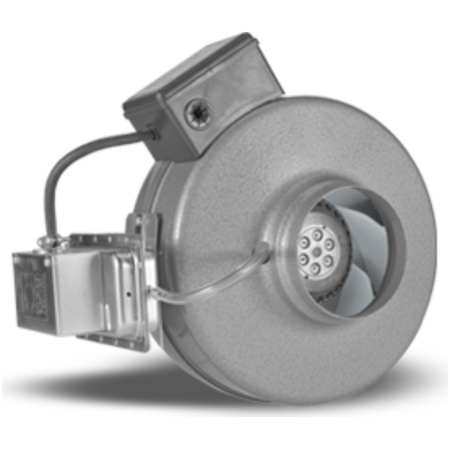

Panasonic Atmosphere 220 CFM 1 Sone Wall Or Ceiling Mounted In-Line Fan With Pressure Sensor
Model: VTX400P|Item: bci4954834
from theAtmosphere Collection
Details
Features:
- Built-in automatic pressure switch automatically turns on fan for 10 minutes, shuts off for 15 minutes. If positive pressure in the duct still exists will turn back on
- Design allows for easy duct hook-up. Brackets are included for wall or ceiling mount
- Powder-coated finish enables sound absorption, durability, and a rust-proof product
- Solves problems that can occur with long, 4” duct runs
- Speed controller sold separately
- Backdraft damper not included
- Covered under a 10 year limited manufacturer warranty
Specifications:
- Housing Width: 12-1/8"
- Housing Depth: 12-13/16"
- CFM: 220
- Wattage: 80W
- Width: 12-1/8"
- Length: 12-13/16"
- Depth: 12-13/16"
- Voltage: 120V
Manufacturer Resources
Owner's ManualDimensions and Measurements
CFM | 220 |
Depth | 12.84 in. |
Duct Size | 4" Round |
Housing Depth | 12.84 in. |
Housing Width | 12.13 in. |
Length | 12.84 in. |
Product Weight | 8.8 lbs. |
Width | 12.13 in. |
Dimensions and Measurements
CFM | 220 |
Depth | 12.84 in. |
Duct Size | 4" Round |
Housing Depth | 12.84 in. |
Housing Width | 12.13 in. |
Length | 12.84 in. |
Product Weight | 8.8 lbs. |
Width | 12.13 in. |
Included Components
Heater Included | No |
Light Included | No |
Included Components
Heater Included | No |
Light Included | No |
Characteristics and Features
Fan Type | In-Line Fan |
Humidity Sensing | No |
Installation Type | Full Install |
Mount Type | Ceiling, Wall |
Characteristics and Features
Fan Type | In-Line Fan |
Humidity Sensing | No |
Installation Type | Full Install |
Mount Type | Ceiling, Wall |
Electrical and Operational Information
Amperage | 0.75 |
Drive Type | Direct Drive |
Sones | 1 |
Voltage | 120 |
Wattage | 80 |
Electrical and Operational Information
Amperage | 0.75 |
Drive Type | Direct Drive |
Sones | 1 |
Voltage | 120 |
Wattage | 80 |
Warranty and Product Information
Certifications | CSA, UL |
Collection | Atmosphere |
Manufacturer Warranty | 10 Year Limited |
Title 20 Compliant | Yes |
Warranty and Product Information
Certifications | CSA, UL |
Collection | Atmosphere |
Manufacturer Warranty | 10 Year Limited |
Title 20 Compliant | Yes |
