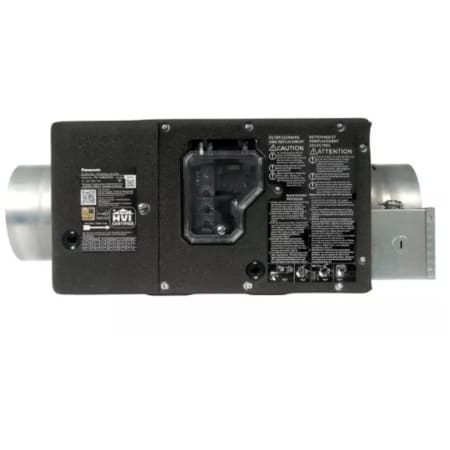

Panasonic WhisperFresh 50 - 150 CFM 1 Sone Ceiling Mounted Energy Star Certified Supply Fan with Adjustable Relative Humidity Level
Model: FV-15NLFS1H|Item: bci4800933
from theWhisperFresh Collection
$472.99
Finish: White -
2 In Stock
Details
WhisperFresh® Select is the ultimate supply air fan. Built-in Pick-A-Flow® airflow selector switch allows you to select your required airflow (50-150 CFM). Features an ECM Motor with SmartFlow® technology for CFM output to achieve precision whole-house supply ventilation. WhisperFresh® Select can be used to comply with the latest codes and standards including ASHRAE 62.2, LEED and CA Title 24.
Features:
- Customizable fresh air supply fan featuring Pick-A-Flow® technology – one fan, you choose the CFM (9 settings - 50-150 CFM)
- Ventilates rooms up to 150 sq. ft.
- At 1 sone of sound output, this ultra quiet fan will keep your room quiet and peaceful
- Humidity sensor will automatically turn the fan on upon excess humidity detection
- Upgraded Junction box on hardwired models has 2 convenient knockouts for routing power
- Operates as a stand-alone filtered supply fresh air solution to meet ASHRAE 62.2 requirements for make-up/supply air
- Capable of communicating with Panasonic’s acclaimed WhisperGreen® Select to create a balanced ventilation solution
- Incorporates adjustable high humidity and low temperature dials for easy adjustments in any climate zone
- Covered under 3 year parts and 6 year motor manufacturer warranties
Product Technologies:
- SmartFlow™ Technology: Intelligent ECM motor with SmartFlow™ technology provides optimum CFM output for precision whole-house supply ventilation
- WiFi Plug N Play® Module Compatible: Enables two way communication between ventilation products to manage indoor air quality more efficiently (WiFi module sold separately)
Specifications:
- CFM: 100, 110, 130, 150, 50, 60, 70, 80, 90
- Sones: 1
- Duct Size: 6" Round
- Housing Width: 15-3/4"
- Housing Depth: 11"
- Amperage: 0.46A
- Voltage: 120V
Dimensions and Measurements
CFM | 90, 80, 70, 60, 50, 150, 130, 110, 100 |
Depth | 11 in. |
Duct Size | 6" Round |
Housing Depth | 11 in. |
Housing Length | 23.75 in. |
Housing Width | 15.75 in. |
Length | 15.75 in. |
Max Ventilation Area | 150 sq. ft. |
Product Weight | 17.41 lbs. |
Width | 15.75 in. |
Dimensions and Measurements
CFM | 90, 80, 70, 60, 50, 150, 130, 110, 100 |
Depth | 11 in. |
Duct Size | 6" Round |
Housing Depth | 11 in. |
Housing Length | 23.75 in. |
Housing Width | 15.75 in. |
Length | 15.75 in. |
Max Ventilation Area | 150 sq. ft. |
Product Weight | 17.41 lbs. |
Width | 15.75 in. |
Included Components
Fan Only | No |
Heater Included | No |
Includes Remote | No |
Light Included | No |
Included Components
Fan Only | No |
Heater Included | No |
Includes Remote | No |
Light Included | No |
Characteristics and Features
Duct Discharge | Horizontal |
Fan Type | In-Line Fan |
Housing Shape | Rectangle |
Humidity Sensing | No |
Installation Type | Fan Only |
Material | Metal, Plastic |
Mount Type | Ceiling |
Characteristics and Features
Duct Discharge | Horizontal |
Fan Type | In-Line Fan |
Housing Shape | Rectangle |
Humidity Sensing | No |
Installation Type | Fan Only |
Material | Metal, Plastic |
Mount Type | Ceiling |
Electrical and Operational Information
Amperage | 0.46 |
Power Source | Hardwired |
Sones | 1 |
Speeds | 9 |
Voltage | 120 |
Electrical and Operational Information
Amperage | 0.46 |
Power Source | Hardwired |
Sones | 1 |
Speeds | 9 |
Voltage | 120 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Collection | WhisperFresh |
Country Of Origin | USA |
Energy Star | Yes |
Made in America | Yes |
Manufacturer Warranty | 6 Year Motor, 3 Year Parts |
Title 20 Compliant | Yes |
Warranty and Product Information
Approved for Commercial Use | Yes |
Collection | WhisperFresh |
Country Of Origin | USA |
Energy Star | Yes |
Made in America | Yes |
Manufacturer Warranty | 6 Year Motor, 3 Year Parts |
Title 20 Compliant | Yes |
