Panasonic BalancedHome 120 Elite ERV With Top Ports And MERV 6 Filter
Model: FV-12VE1T|Item: bci4954819
from theBalancedHome Collection
Details
Bring advanced indoor air quality to your projects with the industry’s most versatile energy recovery ventilator. The BalancedHome™ series offers unmatched flexibility with 8 models and 4 max adjustable CFM ranges, allowing you to choose the perfect solution for any home. Our unique design accommodates both top and side port installations, making it easier to integrate into your plans while meeting stringent code requirements.
Features:
- Equipped with state-of-the-art Smartflow technology to provide balanced ventilation
- Feature-rich controls enable the HVAC professional to customize to the homeowner’s specification
- Advanced MERV 8 filter included; Optional MERV 13 and washable MERV 6 filter available

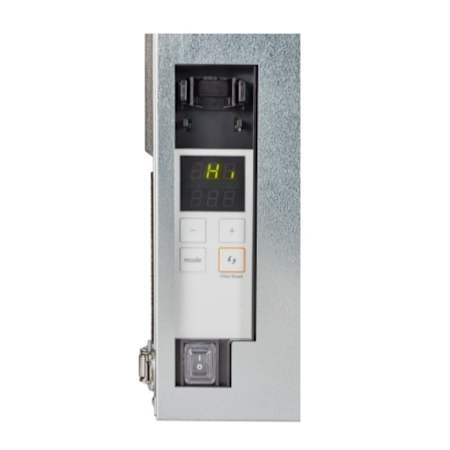

- Integrated optional touch screen LED wall control allows for CFM selection, occupant controllable boost function, and status / error updates
- All models are equipped with a standard power cord and include an optional hardwire adaptor in the box
- Covered under 3 year parts and 6 year motor manufacturer warranties
Specifications:
- Depth: 22-13/16"
- Height: 22-3/8"
- Width: 16"
- Duct Size: 6" Round
- Voltage: 120V
- Wattage: 81W
- Amperage: 1.5A
- Product Weight: 55.12 lbs.
Dimensions and Measurements
CFM | 120, 30 |
CFM (High) | 120 |
Depth | 22.795 in. |
Duct Size | 6" Round |
Height | 22.38 in. |
Product Weight | 55.12 lbs. |
Width | 16.02 in. |
Dimensions and Measurements
CFM | 120, 30 |
CFM (High) | 120 |
Depth | 22.795 in. |
Duct Size | 6" Round |
Height | 22.38 in. |
Product Weight | 55.12 lbs. |
Width | 16.02 in. |
Included Components
Ductless | No |
Included Components
Ductless | No |
Characteristics and Features
Air Filter Type | MERV 8 |
Balanced Ventilation | Yes |
Duct Discharge | Vertical |
Fresh Air | No |
Humidity Sensing | No |
Installation Type | Ceiling Mounted, Wall Mounted |
Characteristics and Features
Air Filter Type | MERV 8 |
Balanced Ventilation | Yes |
Duct Discharge | Vertical |
Fresh Air | No |
Humidity Sensing | No |
Installation Type | Ceiling Mounted, Wall Mounted |
Electrical and Operational Information
Amperage | 1.5 |
Energy Recovery | Yes |
Heat Recovery | Yes |
Power Source | Hardwired |
Speeds | 2 |
Voltage | 120 |
Wattage | 81 |
Electrical and Operational Information
Amperage | 1.5 |
Energy Recovery | Yes |
Heat Recovery | Yes |
Power Source | Hardwired |
Speeds | 2 |
Voltage | 120 |
Wattage | 81 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Collection | BalancedHome |
Fire Rated | No |
Manufacturer Warranty | 3 Year Parts, 6 Year Motor |
Title 20 Compliant | Yes |
Warranty and Product Information
Approved for Commercial Use | Yes |
Collection | BalancedHome |
Fire Rated | No |
Manufacturer Warranty | 3 Year Parts, 6 Year Motor |
Title 20 Compliant | Yes |
