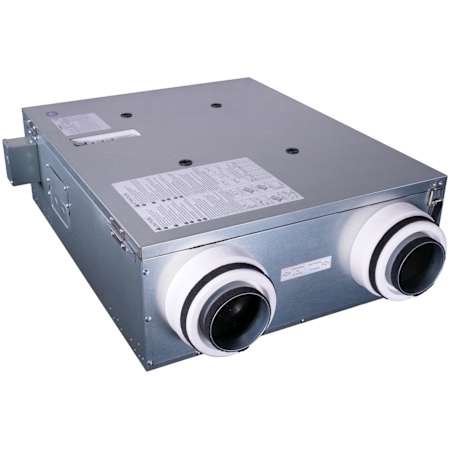

Panasonic Intelli-Balance 100 Hardwired Temperate Climate ERV With Multi Speed Selector And Two DC Motors
Model: FV-10VE2H|Item: bci4954829
from theIntelli-Balance Collection
Details
Intelli-Balance® 100 is ideal for single family homes and multi-family units. It is a customizable, high-performance, high-efficiency Energy Recovery Ventilator (ERV) that’s designed to help you meet ASHRAE 62.2 requirements. This unique and cost-effective ERV was engineered for total versatility and installation flexibility in temperate (not extremely hot or cold) climate zones. Now with a Boost function, the ERV can move the fan speed to high when activated.
Features:
- Occupant controllable boost function
- Two revolutionary DC motors with Smart Flow™ technology ensure optimum CFM output
- Multi-Speed selector provides customizable airflow to create balanced, positive or negative pressure within the home
- MERV 8 filter included; optional MERV 8 and MERV 13 replacements available
- Junction box on hardwired models has 2 convenient knockouts for routing power
- Covered under 3 year parts and 6 year motor manufacturer warranties
Specifications:
- Depth: 8-7/8"
- Height: 8-7/8"
- Width: 23"
- Duct Size: 4" Round, 6" Round
- Voltage: 120V
- Wattage: 81W
- Amperage: 1.5A
- Product Weight: 26 lbs.
Dimensions and Measurements
CFM | 100, 30, 50, 60, 70, 80, 90 |
CFM (High) | 100 |
Depth | 8.875 in. |
Duct Size | 4" Round, 6" Round |
Height | 8.875 in. |
Product Weight | 26 lbs. |
Width | 23 in. |
Dimensions and Measurements
CFM | 100, 30, 50, 60, 70, 80, 90 |
CFM (High) | 100 |
Depth | 8.875 in. |
Duct Size | 4" Round, 6" Round |
Height | 8.875 in. |
Product Weight | 26 lbs. |
Width | 23 in. |
Included Components
Ductless | No |
Included Components
Ductless | No |
Characteristics and Features
Air Filter Type | MERV 8 |
Balanced Ventilation | Yes |
Duct Discharge | Horizontal |
Fresh Air | No |
Humidity Sensing | No |
Installation Type | Ceiling Mounted, Wall Mounted |
Characteristics and Features
Air Filter Type | MERV 8 |
Balanced Ventilation | Yes |
Duct Discharge | Horizontal |
Fresh Air | No |
Humidity Sensing | No |
Installation Type | Ceiling Mounted, Wall Mounted |
Electrical and Operational Information
Amperage | 1.5 |
Energy Recovery | Yes |
Heat Recovery | Yes |
Power Source | Hardwired |
Speeds | 7 |
Voltage | 120 |
Wattage | 81 |
Electrical and Operational Information
Amperage | 1.5 |
Energy Recovery | Yes |
Heat Recovery | Yes |
Power Source | Hardwired |
Speeds | 7 |
Voltage | 120 |
Wattage | 81 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Collection | Intelli-Balance |
Fire Rated | No |
Manufacturer Warranty | 3 Year Parts, 6 Year Motor |
Title 20 Compliant | Yes |
Warranty and Product Information
Approved for Commercial Use | Yes |
Collection | Intelli-Balance |
Fire Rated | No |
Manufacturer Warranty | 3 Year Parts, 6 Year Motor |
Title 20 Compliant | Yes |
