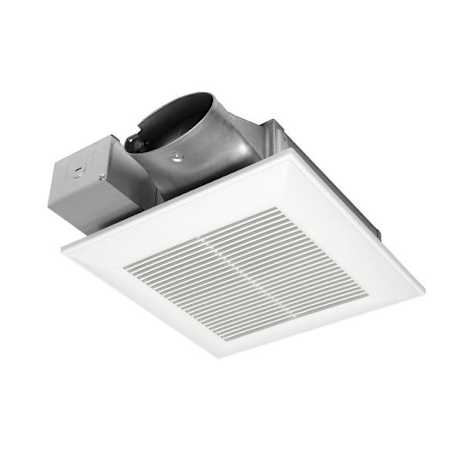

Panasonic 100 CFM 1.3 Sone Ceiling Mounted Energy Star Rated Exhaust Fan with Pick-A-Flow™ Speed Selector
Model: FV-0810VSS1|Item: bci3825792
Details
The Panasonic FV-0810VSS1 WhisperValue DC Ventilation Fan is designed with multi-speed that allows you to select proper, ASHRAE 62.2 code-compliant CFM settings that meet continuous ventilation requirements. Ideal for all types of residential and multi-family construction, It features Panasonic’s revolutionary ECM motor with SmartFlow optimum CFM technology and incorporates a Pick-A-Flow airflow selector switch. The motor moves more air using less energy for an energy-efficient design and is equipped with a thermal-cutoff fuse. Pick-A-Flow airflow selector provides you with the flexibility and control to customize your airflow (80-100 CFM). This slim ventilation fan has a 3-3/8” depth, and its unique L-shaped bracket design provides strong support and makes for easy installation. Energy Star certified and engineered to comply with Energy Star 4.0 requirements for increased efficiency (CFM/Watt), ensuring low cost and energy-efficient operation.
Features:
- Bathroom Vent Fan: Equipped with a revolutionary DC/ECM motor and SmartFlow technology, this ultra-slim, whisper quiet, Energy Star-certified exhaust fan provides superior performance and efficiency; Duct diameter: 4" oval
- Customizable Airflow: This ventilation fan runs continuously at a preset lower level (0, 30-70, in 10 CFM increments), then elevates to a maximum level of operation (80 or 100 CFM) when the wall switch is turned on
- Easy Installation: A sleek 3-3/8" housing depth fits effortlessly into tight spaces, and the unique L-shaped bracket simplifies installation and provides strong support; UL listed for ceiling, wall, and tub/shower enclosure mounts when GFCI protected.
- Explore Panasonic's Selection: Panasonic offers a wide range of vent fans including fans with LED lights, timers, heaters, and condensation sensors for humidity control, plus installation kits, soffit vents, replacement motors and fan cover grilles
- Healthy Living Begins with Clean Indoor Air: Ensure a healthy home for your family with a high-performance Panasonic ventilation systems, air purification devices and HVAC solutions
- CFM: 50, 70, 100
- Sones: 0.3-1.3
- Duct Size: 4" Oval
- Grille Width: 13"
- Wattage: 12.8
- Voltage: 120
- Amperage: 0.39
- Warranty: 6 year DC Motor, 3 Year Parts
Dimensions and Measurements
CFM (High) | 100 |
Duct Size | 4" Oval |
Grille Length | 13 in. |
Grille Width | 13 in. |
Housing Depth | 3.375 in. |
Housing Length | 10.25 in. |
Housing Width | 10.25 in. |
Dimensions and Measurements
CFM (High) | 100 |
Duct Size | 4" Oval |
Grille Length | 13 in. |
Grille Width | 13 in. |
Housing Depth | 3.375 in. |
Housing Length | 10.25 in. |
Housing Width | 10.25 in. |
Included Components
Fan Only | Yes |
Heater Included | No |
Light Included | No |
Included Components
Fan Only | Yes |
Heater Included | No |
Light Included | No |
Characteristics and Features
Decorative | No |
Fan Type | Bath Fan |
Grille Finish | White |
Grille Shape | Square |
Housing Shape | Square |
Installation Type | Full Install |
Mount Type | Wall, Ceiling |
Characteristics and Features
Decorative | No |
Fan Type | Bath Fan |
Grille Finish | White |
Grille Shape | Square |
Housing Shape | Square |
Installation Type | Full Install |
Mount Type | Wall, Ceiling |
Electrical and Operational Information
Amperage | 0.39 |
Power Source | Hardwired |
Sones | 1.3 |
Voltage | 120 |
Electrical and Operational Information
Amperage | 0.39 |
Power Source | Hardwired |
Sones | 1.3 |
Voltage | 120 |
Warranty and Product Information
Certifications | ASHRAE, HVI, UL |
Energy Star | Yes |
Manufacturer Warranty | 3 Year Parts |
Title 24 | Yes |
Warranty and Product Information
Certifications | ASHRAE, HVI, UL |
Energy Star | Yes |
Manufacturer Warranty | 3 Year Parts |
Title 24 | Yes |
