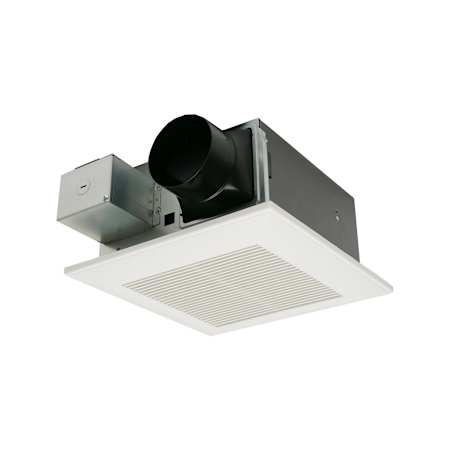

Panasonic WhisperFit DC 110 CFM 1.2 Sone Humidity Sensing Ceiling Mounted Bath Exhaust Fan with Energy Star Rating
Model: FV-0511VFC1|Item: bci4221178
Details
The WhisperFit DC Fan with Condensation Sensor for Humidity Control is an ideal retrofit solution. Built-in energy-efficient ECM (DC) motor with Pick-A-Flow airflow selector allows you to select required airflow (50, 80 or 110 CFM). Condensation Sensor provides hands-free operation and automatic moisture control. Single-hinged Flex-Z Fast bracket, pre-installed alignment guides, and temporary clip allows for flexible, fast and easy installation. This vent fan enables you to utilize existing duct, while its low profile housing design ensures a proper fit in any bathroom ceiling or other areas of a home with at least 5 5/8” depth. The slide and snap-in junction box and duct collar provide greater flexibility when wiring and attaching the duct, and this premium ceiling ventilation fan now includes preinstalled plastic alignment guides and temporary retaining clip. These clips molded into the casting will allow the fan to stay in place while the installer fastens the fan into can.
Features:
- Retrofit Bathroom Vent Fan with Humidity Control: This fan features a condensation sensor that helps control bathroom condensation and remove humidity; Automatic sensor turns fan on when humidity is detected
- Customizable Airflow: This slim, whisper quiet, Energy Star-certified fan features a DC/ECM motor and Pick-A-Flow technology that allows you to select your desired airflow from 50, 80 or 110 CFM at the flip of a switch for your room size and usage needs
- Easy Installation: Flex-Z Fast Bracket simplifies installation with a single-hinge bracket for easy positioning; Low-profile 5-5/8" housing depth fits in 2 x 6 joist size or larger
- Explore Panasonic's Selection: Panasonic offers a wide range of vent fans including fans with LED lights, timers, heaters, and condensation sensors for humidity control, plus installation kits, soffit vents, replacement motors and fan cover grilles
- Healthy Living Begins with Clean Indoor Air: Ensure a healthy home for your family with a high-performance Panasonic ventilation systems, air purification devices and HVAC solutions
- CFM: 50, 80, 110
- Sones: 0.4, 0.8, 1.2
- Duct Size: 4" Round
- Grille Width: 13"
- Grille Length: 13"
- Housing Width: 10-1/4"
- Amperage: 0.17, 0.22, 0.28A
- Voltage: 120V
- Wattage: 17.9W
Dimensions and Measurements
CFM | 110, 50, 80 |
Depth | 6.5 in. |
Duct Size | 4" Round |
Grille Length | 13 in. |
Grille Width | 13 in. |
Housing Depth | 5.6 in. |
Housing Length | 10.25 in. |
Housing Width | 10.25 in. |
Length | 13 in. |
Max Ventilation Area | 110 sq. ft. |
Product Weight | 7.96 lbs. |
Width | 13 in. |
Dimensions and Measurements
CFM | 110, 50, 80 |
Depth | 6.5 in. |
Duct Size | 4" Round |
Grille Length | 13 in. |
Grille Width | 13 in. |
Housing Depth | 5.6 in. |
Housing Length | 10.25 in. |
Housing Width | 10.25 in. |
Length | 13 in. |
Max Ventilation Area | 110 sq. ft. |
Product Weight | 7.96 lbs. |
Width | 13 in. |
Included Components
Fan Only | No |
Heater Included | No |
Includes Remote | No |
Includes Thermostat | No |
Light Included | No |
Motion Sensor | No |
Included Components
Fan Only | No |
Heater Included | No |
Includes Remote | No |
Includes Thermostat | No |
Light Included | No |
Motion Sensor | No |
Characteristics and Features
Decorative | No |
Duct Discharge | Vertical |
Fan Type | Bath Fan |
Grille Shape | Square |
Housing Shape | Square |
Humidity Sensing | Yes |
Installation Type | Full Install |
Material | Galvanized Steel |
Mount Type | Ceiling |
Smart Home | No |
Characteristics and Features
Decorative | No |
Duct Discharge | Vertical |
Fan Type | Bath Fan |
Grille Shape | Square |
Housing Shape | Square |
Humidity Sensing | Yes |
Installation Type | Full Install |
Material | Galvanized Steel |
Mount Type | Ceiling |
Smart Home | No |
Electrical and Operational Information
Amperage | 0.17, 0.22, 0.28 |
Frequency | 60 Hertz |
Power Source | Hardwired |
Sones | 0.4, 0.8, 1.2 |
Speeds | 3 |
Voltage | 120 |
Wattage | 17.9 |
Electrical and Operational Information
Amperage | 0.17, 0.22, 0.28 |
Frequency | 60 Hertz |
Power Source | Hardwired |
Sones | 0.4, 0.8, 1.2 |
Speeds | 3 |
Voltage | 120 |
Wattage | 17.9 |
Warranty and Product Information
Approved for Commercial Use | Yes |
CALGreen | Yes |
Certifications | ASHRAE, HVI, UL |
Collection | WhisperFit DC |
Country Of Origin | Mexico |
Energy Star | Yes |
Manufacturer Warranty | 3 Year Parts, 6 Year Motor |
Title 24 | Yes |
Warranty and Product Information
Approved for Commercial Use | Yes |
CALGreen | Yes |
Certifications | ASHRAE, HVI, UL |
Collection | WhisperFit DC |
Country Of Origin | Mexico |
Energy Star | Yes |
Manufacturer Warranty | 3 Year Parts, 6 Year Motor |
Title 24 | Yes |
