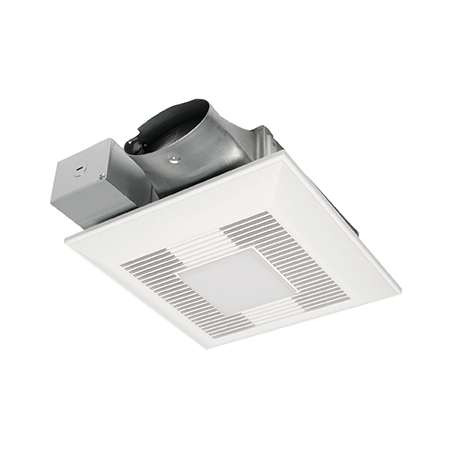

Panasonic 100 CFM 0.5 Sone Ceiling Mounted LED Lighted Exhaust Fan with Smart Flow Technology
Model: FV-0510VSL1|Item: bci3217466
Fan with Light
Details
The Panasonic FV-0510VSL1 WhisperValue DC Ventilation Fan features an LED light and Pick-A-Flow Speed Selector, making it the perfect ventilation bathroom fan for a multifamily or single-family home. It features Panasonic’s revolutionary ECM motor with SmartFlow technology for optimum CFM, moving more air while using less energy for energy efficiency and increased fan life. The motor incorporates the Pick-A-Flow selector switch, which provides the unique ability to select your needed airflow (50-80-100 CFM). Features a contemporary flush mount grille that incorporates one 10W dimmable LED chip panel with 1W LED night light for warm, energy-efficient illumination. UL listed for ceiling or wall mount, the thin profile of this fan provides flexibility for where you can install it and the unique L-shaped bracket simplifies installation while providing strong support. This Panasonic fan is the lowest-profile Energy Star rate ventilation fan available, is Energy Star certified and has been engineered to comply with the Energy Star 4.0 requirement for increased efficiency.
Features:
- Bathroom Ventilation Fan with Light: Equipped with a DC/ECM motor and SmartFlow technology, this ultra-slim, whisper quiet vent fan features a dimmable 3000K LED light with low power nightlight for warm, energy-efficient illumination; Duct diameter: 4" oval
- Customizable Airflow: This Energy Star-certified fan features Pick-A-Flow technology allows you to select your desired airflow from 50, 80 or 100 CFM at the flip of a switch for your room size and usage needs
- Easy Installation: A sleek 3-3/8" housing depth fits effortlessly into tight spaces, and the unique L-shaped bracket simplifies installation and provides strong support; UL listed for ceiling, wall, and tub/shower enclosure mounts when GFCI protected.
- Explore Panasonic's Selection: Panasonic offers a wide range of vent fans including fans with LED lights, timers, heaters, and condensation sensors for humidity control, plus installation kits, soffit vents, replacement motors and fan cover grilles
- Healthy Living Begins with Clean Indoor Air: Ensure a healthy home for your family with a high-performance Panasonic ventilation systems, air purification devices and HVAC solutions
- CFM: 100
- Sones: 0.5
- Duct Size: 4" Oval
- Grille Width: 13"
- Grille Length: 13"
- Housing Width: 10-1/4"
- Housing Length: 10-1/4"
- Housing Depth: 3-3/8"
- Lighting: LED
- HVI Certified: Yes
Manufacturer Resources
Installation SheetModel Line BrochureWall Control CompatibilitySpecification SheetDimensions and Measurements
CFM | 50, 80, 100 |
Duct Size | 4" Oval |
Grille Length | 13 in. |
Grille Width | 13 in. |
Housing Depth | 3.37 in. |
Housing Length | 10.25 in. |
Housing Width | 10.25 in. |
Dimensions and Measurements
CFM | 50, 80, 100 |
Duct Size | 4" Oval |
Grille Length | 13 in. |
Grille Width | 13 in. |
Housing Depth | 3.37 in. |
Housing Length | 10.25 in. |
Housing Width | 10.25 in. |
Included Components
Heater Included | No |
Includes Remote | No |
Light Included | Yes |
Included Components
Heater Included | No |
Includes Remote | No |
Light Included | Yes |
Characteristics and Features
Bulb Type | LED |
Decorative | No |
Fan Type | Bath Fan |
Grille Shape | Square |
Humidity Sensing | No |
Installation Type | Full Install |
Material | Plastic, Metal |
Mount Type | Ceiling |
Characteristics and Features
Bulb Type | LED |
Decorative | No |
Fan Type | Bath Fan |
Grille Shape | Square |
Humidity Sensing | No |
Installation Type | Full Install |
Material | Plastic, Metal |
Mount Type | Ceiling |
Electrical and Operational Information
Amperage | 0.39 |
Power Source | Hardwired |
Sones | 0.3 |
Speeds | 3 |
Voltage | 120 |
Wattage | 12.8 |
Electrical and Operational Information
Amperage | 0.39 |
Power Source | Hardwired |
Sones | 0.3 |
Speeds | 3 |
Voltage | 120 |
Wattage | 12.8 |
Warranty and Product Information
Certifications | ASHRAE, HVI, UL |
Collection | WhisperValue |
Energy Star | Yes |
Location Rating | Damp Location |
Manufacturer Warranty | 3 Year Parts, 6 Year Limited |
Title 24 | Yes |
Warranty and Product Information
Certifications | ASHRAE, HVI, UL |
Collection | WhisperValue |
Energy Star | Yes |
Location Rating | Damp Location |
Manufacturer Warranty | 3 Year Parts, 6 Year Limited |
Title 24 | Yes |
