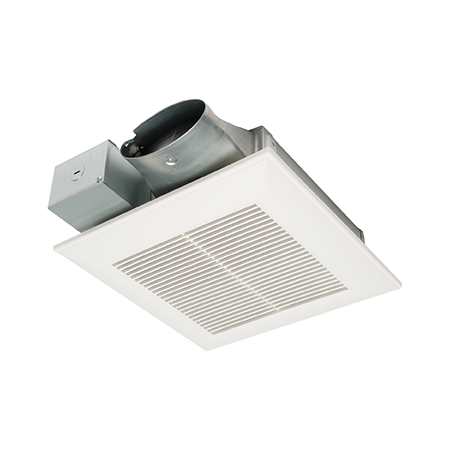

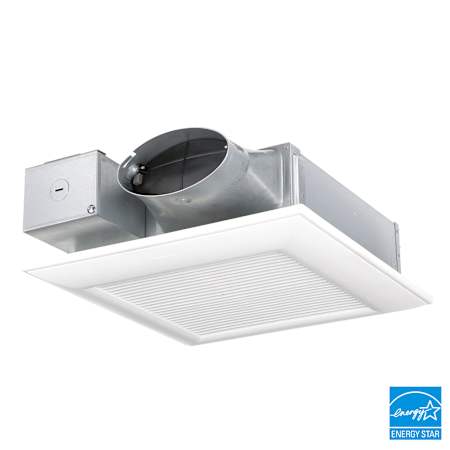

Panasonic 100 CFM 0.6 Sone Condensation Sensing Energy Star Certified Bath Fan with Pick-A-Flow Speed Selector
Model: FV-0510VSC1|Item: bci3164785
Details
The Panasonic FV-0510VSC1 WhisperValue DC Ventilation Fan features a condensation sensor that helps control bathroom condensation and remove humidity. It features Panasonic’s revolutionary ECM motor with SmartFlow optimum CFM technology and incorporates a Pick-A-Flow airflow selector switch that provides you with the flexibility and control to select your required airflow (50-80-100 CFM). This extremely thin profile ventilation fan is UL listed for ceiling or wall mount and its unique L-shaped bracket design provides strong support and makes for easy installation. Energy Star certified and engineered to comply with Energy Star 4.0 requirements for increased efficiency (CFM/Watt), ensuring low cost and energy-efficient operation.
Features:
- Bathroom Vent Fan with Humidity Control: This fan features a condensation sensor that helps control bathroom humidity; Automatic sensor turns fan on when humidity is detected; Duct diameter: 4" oval
- Customizable Airflow: This slim, whisper quiet, Energy Star-certified fan features a DC/ECM motor and Pick-A-Flow technology that allows you to select your desired airflow from 50, 80 or 100 CFM at the flip of a switch for your room size and usage needs
- Versatile Design and Easy Installation: UL listed for ceiling or wall mount, this energy efficient fan features a unique L-shaped bracket design that provides strong support and makes for easy installation
- Explore Panasonic's Selection: Panasonic offers a wide range of vent fans including fans with LED lights, timers, heaters, and condensation sensors for humidity control, plus installation kits, soffit vents, replacement motors and fan cover grilles
- Healthy Living Begins with Clean Indoor Air: Ensure a healthy home for your family with a high-performance Panasonic ventilation systems, air purification devices and HVAC solutions
- CFM: 50
- CFM: 80
- CFM: 100
- Duct Size: 4" Oval
- Grille Length: 13"
- Grille Width: 13"
- Housing Length: 10-1/2"
- Housing Width: 10-1/2"
- Lighting: No
- HVI Certified: Yes
- Voltage: 120 v
Dimensions and Measurements
CFM | 50, 80, 100 |
Duct Size | 4" Oval |
Grille Length | 13 in. |
Grille Width | 13 in. |
Housing Length | 10.5 in. |
Housing Width | 10.5 in. |
Product Weight | 10 lbs. |
Dimensions and Measurements
CFM | 50, 80, 100 |
Duct Size | 4" Oval |
Grille Length | 13 in. |
Grille Width | 13 in. |
Housing Length | 10.5 in. |
Housing Width | 10.5 in. |
Product Weight | 10 lbs. |
Included Components
Fan Only | Yes |
Heater Included | No |
Light Included | No |
Motion Sensor | No |
Included Components
Fan Only | Yes |
Heater Included | No |
Light Included | No |
Motion Sensor | No |
Characteristics and Features
Decorative | No |
Duct Discharge | Horizontal |
Fan Type | Bath Fan |
Grille Finish | White |
Grille Shape | Square |
Humidity Sensing | Yes |
Installation Type | Full Install |
Mount Type | Wall, Ceiling |
Characteristics and Features
Decorative | No |
Duct Discharge | Horizontal |
Fan Type | Bath Fan |
Grille Finish | White |
Grille Shape | Square |
Humidity Sensing | Yes |
Installation Type | Full Install |
Mount Type | Wall, Ceiling |
Electrical and Operational Information
Amperage | 0.39 |
Frequency | 60 Hertz |
Power Source | Hardwired |
RPM | 708, 797, 902 |
Sones | 0.3, 0.4, 0.9 |
Speeds | 3 |
Voltage | 120 |
Wattage | 46.8 |
Electrical and Operational Information
Amperage | 0.39 |
Frequency | 60 Hertz |
Power Source | Hardwired |
RPM | 708, 797, 902 |
Sones | 0.3, 0.4, 0.9 |
Speeds | 3 |
Voltage | 120 |
Wattage | 46.8 |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | CSA, ASHRAE, HVI, ETL, UL |
Energy Star | Yes |
Location Rating | Damp Location |
Manufacturer Warranty | 3 Year Parts, 6 Year Motor |
Series | WhisperValue DC, WhisperValue |
Title 24 | Yes |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | CSA, ASHRAE, HVI, ETL, UL |
Energy Star | Yes |
Location Rating | Damp Location |
Manufacturer Warranty | 3 Year Parts, 6 Year Motor |
Series | WhisperValue DC, WhisperValue |
Title 24 | Yes |
