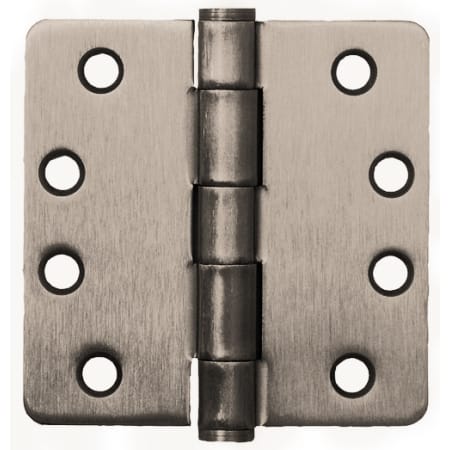

Pamex 4 Inch x 4 Inch Plain Bearing 1/4 Inch Radius Corner Mortise Hinge - Single Hinge

Features:

• Includes a single hinge in each order
• Features precisely machined 1/4" radius corners
• Constructed with 8 screw holes in an arc hole pattern arrangement for maximum mounting strength
• Tested for commercial strength application, ideal for your home or business
• Includes a pack of phillips flat-head screws for simple, out of the box installation

Product Technologies:

• Plain Bearing Hinge: Plain bearing hinges feature knuckles that are machined to a smooth surface, allowing them to move against one another without bearings. Plain bearing hinges are not recommended for heavy use on high traffic entrance ways, but meet the need of a standard residential door.

• Material - Steel: Steel is cheap strong and durable making it a favorite for hinges of all types. Though it is more prone to rusting than solid brass or stainless steel.

• Mortise Hinges: Mortise door hinges mount flush with the surface of your door, providing maximum strength with the least interference with door functionality. It is recommended that three hinges be used on doors up to and including 7-1/2 feet, with one additional hinge for each additional 2-1/2 feet. Be sure to check your current hinges before making a purchase.

Specifications:

• Height: 4"
• Width: 4"
• Material: Steel
• Mount Type: Mortise
• Gauge: 0.13"
• Number of Knuckles: 5
• Number of Screw Holes: 8
• Hole Pattern: Arc
• Hinge Strength: Commercial
• Removable Pin: No
• Self Closing: No
• Quantity: 1
• ANSI Certification: A 156.1
