Shipping to:Chico, CA
The Oxygen Lighting 37-544-24 has been discontinued
** See similar or replacement items below **
Item # bci2969700

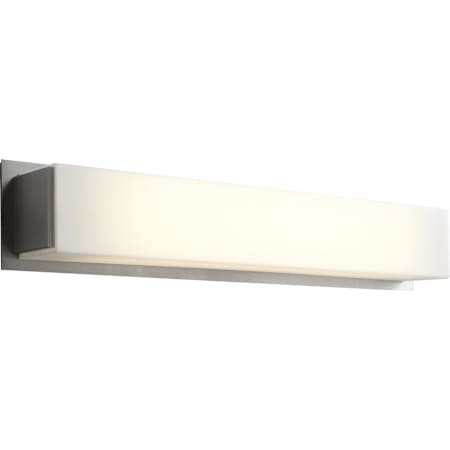

Oxygen Lighting Fuse 26" Wide ADA 2 Light Commercial 277V Single LED Bath Bar with White Acrylic Shade
Model: 37-544-24|Item: bci2969700
from theFuse Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Features:
- 277V: These are not recommended for residential applications - only commercial applications
- Cold rolled steel housing
- Machined steel end caps
- Diffusers are formed 1/8" thick matte white acrylic
- 0-10V/Reverse phase dimming
- Mounts to 4" octagonal junction box, with additional holes provided to mount to structure
- ADA Compliant
- Tool-less access to lamp
Dimensions:
- Height: 5"
- Width: 26"
- Extension: 4"
Electrical Specifications:
- Bulb Included: Yes
- Bulb Base: Integrated LED
- Number of Bulbs: 2
- Watts Per Bulb: 10.5
- Wattage: 21
- Voltage: 277v
- Color Temperature: 3000K
- Color Rendering Index (CRI): 85
- Lumens: 2436
- Dimmable: Yes
- UL Listed: Yes
- Location Rating: Damp Location
- Energy Star: No
- Certified CAN/CSA STD C22.2 No. 250
- Integrated LED array
Dimensions and Measurements
Extension | 4 in. |
Height | 5 in. |
Product Weight | 9 lbs. |
Width | 26 in. |
Dimensions and Measurements
Extension | 4 in. |
Height | 5 in. |
Product Weight | 9 lbs. |
Width | 26 in. |
Included Components
Bulb Included | Yes |
Includes Glass Guard | No |
Shade | Yes |
Included Components
Bulb Included | Yes |
Includes Glass Guard | No |
Shade | Yes |
Characteristics and Features
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 3000K |
Dimmable | Yes |
Fixture Shape | Linear |
LED | Yes |
Light Direction | Ambient Lighting |
Material | Steel |
Number of Bulbs | 2 |
Number of Light Source(s) | 1 |
Shade Color | White |
Shade Material | Synthetic |
Shade Shape | Rectangle |
Theme | Contemporary |
Characteristics and Features
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 3000K |
Dimmable | Yes |
Fixture Shape | Linear |
LED | Yes |
Light Direction | Ambient Lighting |
Material | Steel |
Number of Bulbs | 2 |
Number of Light Source(s) | 1 |
Shade Color | White |
Shade Material | Synthetic |
Shade Shape | Rectangle |
Theme | Contemporary |
Electrical and Operational Information
Color Rendering Index (CRI) | 85 |
Lumens | 2436 |
Voltage | 277 |
Wattage | 21 |
Watts Per Bulb | 10.5 |
Electrical and Operational Information
Color Rendering Index (CRI) | 85 |
Lumens | 2436 |
Voltage | 277 |
Wattage | 21 |
Watts Per Bulb | 10.5 |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
Certifications | UL |
Collection | Fuse |
Location Rating | Damp Location |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
Certifications | UL |
Collection | Fuse |
Location Rating | Damp Location |
