The Oxygen Lighting 37-524-40 has been discontinued
** See similar or replacement items below **
Item # bci2969678

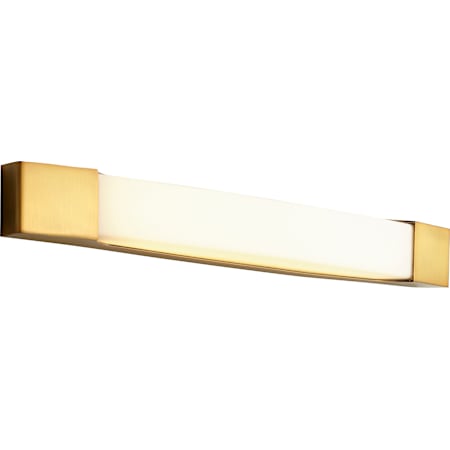

Oxygen Lighting Apollo 28" Wide ADA 2 Light Commercial 277V Reversible Mount Single LED Bath Bar with Acrylic Shade
Model: 37-524-40|Item: bci2969678
from theApollo Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Features:
- 277V: These are not recommended for residential applications - only commercial applications
- Cold rolled steel housing and trim
- Diffuser is 1/8" thick matte white acrylic
- 0-10V/Reverse phase dimming
- Approved for vertical or horizontal mounting - wall applications only
- ADA Compliant
- Certified CAN/CSA STD C22.2 No. 250.0
- Mounts to 2" x 3" junction box
Dimensions:
- Height: 2.75"
- Width: 27.75"
- Extension: 2.5"
Electrical Specifications:
- Bulb Included: Yes
- Bulb Base: Integrated LED
- Number of Bulbs: 2
- Watts Per Bulb: 10.5
- Wattage: 21
- Voltage: 277v
- Color Temperature: 3000K
- Color Rendering Index (CRI): 85
- Lumens: 2436
- Dimmable: Yes
- UL Listed: Yes
- Location Rating: Damp Location
- Energy Star: No
- ETL Approved for damp location - conforms to UL standard 1598
- Integrated LED array
Manufacturer Resources
Specification SheetDimensions and Measurements
Extension | 2.5 in. |
Height | 2.75 in. |
Product Weight | 6 lbs. |
Width | 27.75 in. |
Dimensions and Measurements
Extension | 2.5 in. |
Height | 2.75 in. |
Product Weight | 6 lbs. |
Width | 27.75 in. |
Included Components
Bulb Included | Yes |
Includes Glass Guard | No |
Shade | Yes |
Included Components
Bulb Included | Yes |
Includes Glass Guard | No |
Shade | Yes |
Characteristics and Features
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 3000K |
Dimmable | Yes |
Fixture Shape | Linear |
LED | Yes |
Light Direction | Ambient Lighting |
Material | Steel |
Number of Bulbs | 2 |
Number of Light Source(s) | 1 |
Reversible Mounting | Yes |
Shade Color | White |
Shade Material | Synthetic |
Shade Shape | Rectangle |
Theme | Contemporary |
Characteristics and Features
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 3000K |
Dimmable | Yes |
Fixture Shape | Linear |
LED | Yes |
Light Direction | Ambient Lighting |
Material | Steel |
Number of Bulbs | 2 |
Number of Light Source(s) | 1 |
Reversible Mounting | Yes |
Shade Color | White |
Shade Material | Synthetic |
Shade Shape | Rectangle |
Theme | Contemporary |
Electrical and Operational Information
Color Rendering Index (CRI) | 85 |
Lumens | 2436 |
Voltage | 277 |
Wattage | 21 |
Watts Per Bulb | 10.5 |
Electrical and Operational Information
Color Rendering Index (CRI) | 85 |
Lumens | 2436 |
Voltage | 277 |
Wattage | 21 |
Watts Per Bulb | 10.5 |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
Certifications | UL |
Collection | Apollo |
Location Rating | Damp Location |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
Certifications | UL |
Collection | Apollo |
Location Rating | Damp Location |
