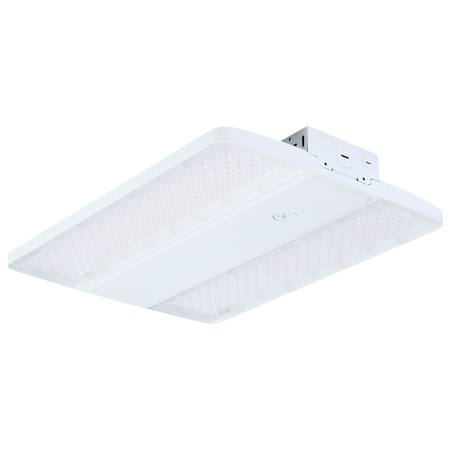

Nuvo Lighting 2 Light 12" Wide LED Commercial High Bay - 105/90/70 Watt
Model: 65/1510|Item: bci5208351
Details
The SATCO NUVO 65-1510 LED Beam Selectable Linear Highbay delivers configurable illumination for high-ceiling commercial and industrial spaces. Selectable beam distributions of 45x100, 65x95, or 90x90 support aisle, general, or wide-area layouts. Field-selectable wattage options of 70W, 90W, or 105W produce 9,870 to 15,600 lumens with efficacy up to 148 LPW, while selectable CCTs of 3000K, 4000K, and 5000K provide flexibility. Built with a die-cast aluminum housing and polycarbonate lens, it operates on a universal 120-347V input and includes an integrated sensor port and suspension kit. IP20 and IK09 rated, wet-location suitable, DLC 6.0 Listed, rated for 50,000 hours, and backed by a 5-year warranty.
Features:
- Constructed from aluminum
- Capable of being dimmed
- Rated for installation in damp locations
- Fixed downlight
- Comes with polycarbonate shades
- For use in commercial settings
- Integrated LED lighting
- Covered under a 5 year manufacturer warranty
Dimensions:
- Width: 11-3/16" (284.48 mm)
- Height: 1-7/8" (48.006 mm)
- Depth: 15" (381 mm)
Specifications:
- Number of Light Source(s): 2
- Bulbs Included: Yes
- Wattage: 105, 70, 90 watts
- Color Temperature: 3000K, 4000K, 5000K
- Color Rendering Index: 80 CRI
- Lumens: 15600, 9870
- Average Hours: 50000
Specifications
Dimensions and Measurements
Depth | 15 in. |
Height | 1.89 in. |
Nominal Width | 11 in. |
Product Weight | 5.28 lbs. |
Width | 11.2 in. |
Dimensions and Measurements
Depth | 15 in. |
Height | 1.89 in. |
Nominal Width | 11 in. |
Product Weight | 5.28 lbs. |
Width | 11.2 in. |
Included Components
Bulb Included | Yes |
Shade | Yes |
Included Components
Bulb Included | Yes |
Shade | Yes |
Characteristics and Features
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 3000K, 4000K, 5000K |
Dimmable | Yes |
LED | Yes |
Light Direction | Down Lighting |
Material | Aluminum |
Number of Light Source(s) | 2 |
Shade Color | Clear |
Shade Material | Polycarbonate |
Characteristics and Features
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 3000K, 4000K, 5000K |
Dimmable | Yes |
LED | Yes |
Light Direction | Down Lighting |
Material | Aluminum |
Number of Light Source(s) | 2 |
Shade Color | Clear |
Shade Material | Polycarbonate |
Electrical and Operational Information
Average Hours | 50000 Hours |
Color Rendering Index (CRI) | 80 |
Lumens | 15600, 9870 |
Power Source | Hardwired |
Voltage | 120, 347 |
Wattage | 105, 70, 90 |
Electrical and Operational Information
Average Hours | 50000 Hours |
Color Rendering Index (CRI) | 80 |
Lumens | 15600, 9870 |
Power Source | Hardwired |
Voltage | 120, 347 |
Wattage | 105, 70, 90 |
Warranty and Product Information
Country Of Origin | Vietnam |
Location Rating | Damp Location |
Manufacturer Warranty | 5 Year |
Warranty and Product Information
Country Of Origin | Vietnam |
Location Rating | Damp Location |
Manufacturer Warranty | 5 Year |
