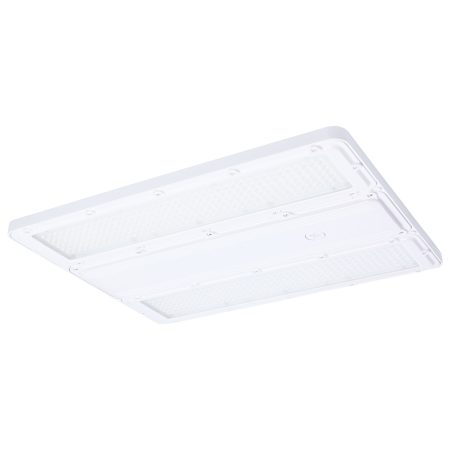

Nuvo Lighting 160/135/120 Watt 14" Wide LED Commercial High Bay - 3K/4K/5K CCT - IP69K - 120-347 Volt
Model: 65/1171|Item: bci5220341
$237.99
Finish: White -
238 In Stock
Details
The SATCO NUVO 65/1171 Linear IP69K High Bay offers increased lumen output in a compact, rugged design built for harsh environments. With selectable wattages of 160W/135W/120W and CCT options of 3000K/4000K/5000K, it allows for adaptable performance in the field. Designed for demanding washdown applications, this fixture features an IP69K rating, IK10 impact-resistant polycarbonate lens, and 6kV surge protection. Operating on 120-347V, this NSF listed high bay is sensor ready with an integrated 3.5mm auxiliary port and includes suspension chains and hooks for straightforward installation.
Features:
- Constructed from aluminum
- Capable of being dimmed
- Rated for installation in wet locations
- Fixed downlight
- Comes with polycarbonate shade
- For use in commercial settings
- Integrated LED lighting
- Covered under a 5 year manufacturer warranty
Dimensions:
- Width: 13-3/4" (350.012 mm)
- Height: 2-7/16" (61.976 mm)
- Depth: 16-3/4" (425.958 mm)
Specifications:
- Number of Light Source(s): 1
- Bulbs Included: Yes
- Wattage: 120, 135, 160 watts
- Color Temperature: 3000K, 4000K, 5000K
- Color Rendering Index: 80 CRI
- Lumens: 19900, 26000
- Average Hours: 50000
Specifications
Dimensions and Measurements
Depth | 16.77 in. |
Height | 2.44 in. |
Nominal Width | 14 in. |
Product Weight | 10.6 lbs. |
Width | 13.78 in. |
Dimensions and Measurements
Depth | 16.77 in. |
Height | 2.44 in. |
Nominal Width | 14 in. |
Product Weight | 10.6 lbs. |
Width | 13.78 in. |
Included Components
Bulb Included | Yes |
Shade | Yes |
Included Components
Bulb Included | Yes |
Shade | Yes |
Characteristics and Features
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 3000K, 4000K, 5000K |
Dimmable | Yes |
Hanging Options | Chains |
LED | Yes |
Light Direction | Down Lighting |
Material | Aluminum |
Number of Light Source(s) | 1 |
Shade Color | Frosted |
Shade Material | Polycarbonate |
Shade Shape | Rectangle |
Characteristics and Features
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 3000K, 4000K, 5000K |
Dimmable | Yes |
Hanging Options | Chains |
LED | Yes |
Light Direction | Down Lighting |
Material | Aluminum |
Number of Light Source(s) | 1 |
Shade Color | Frosted |
Shade Material | Polycarbonate |
Shade Shape | Rectangle |
Electrical and Operational Information
Average Hours | 50000 Hours |
Color Rendering Index (CRI) | 80 |
Lumens | 19900, 26000 |
Power Source | Hardwired |
Voltage | 120, 347 |
Wattage | 120, 135, 160 |
Electrical and Operational Information
Average Hours | 50000 Hours |
Color Rendering Index (CRI) | 80 |
Lumens | 19900, 26000 |
Power Source | Hardwired |
Voltage | 120, 347 |
Wattage | 120, 135, 160 |
Warranty and Product Information
Country Of Origin | Vietnam |
Location Rating | Wet Location |
Manufacturer Warranty | 5 Year |
Warranty and Product Information
Country Of Origin | Vietnam |
Location Rating | Wet Location |
Manufacturer Warranty | 5 Year |
